Icom IC-260a Owner's Manual

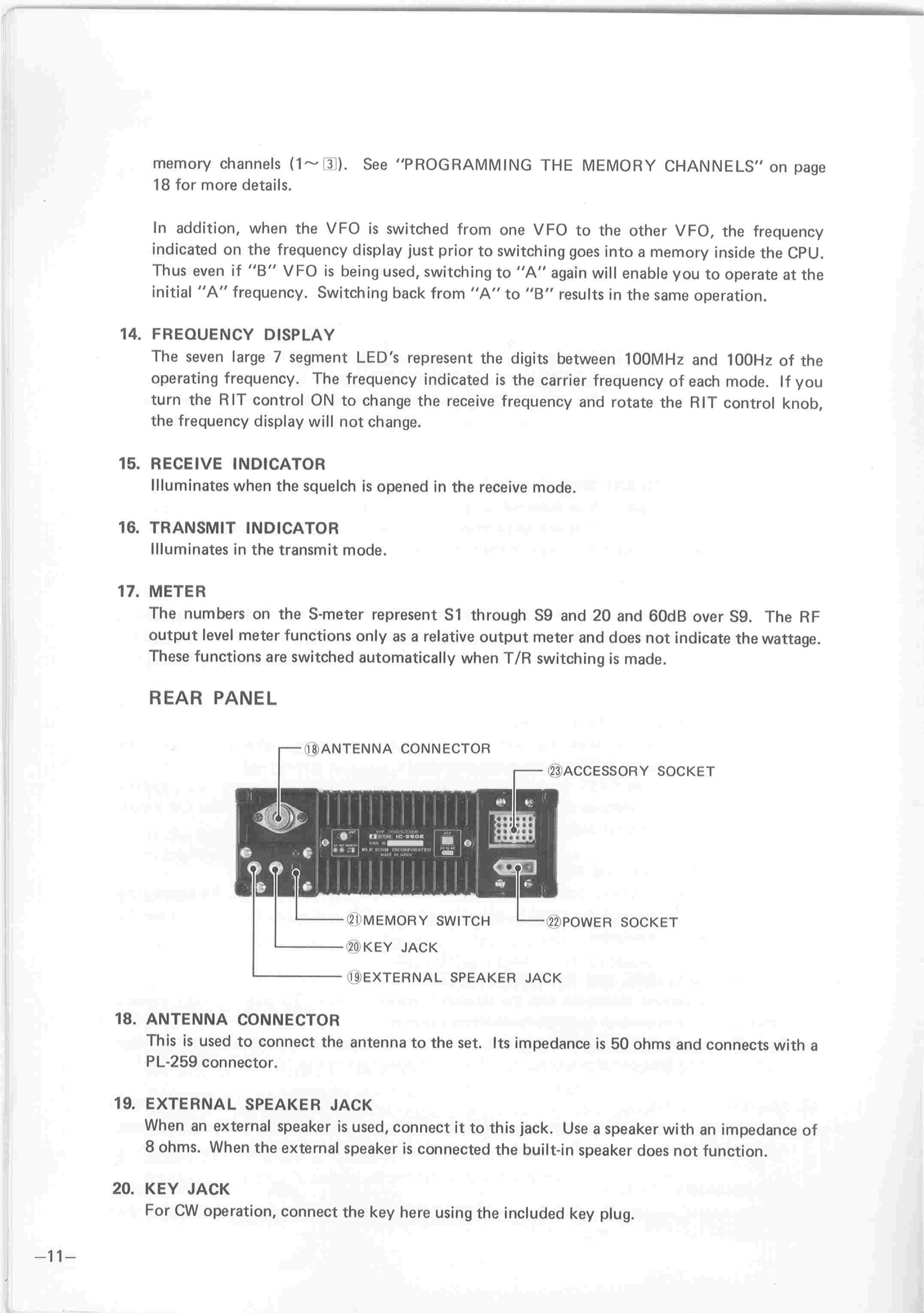

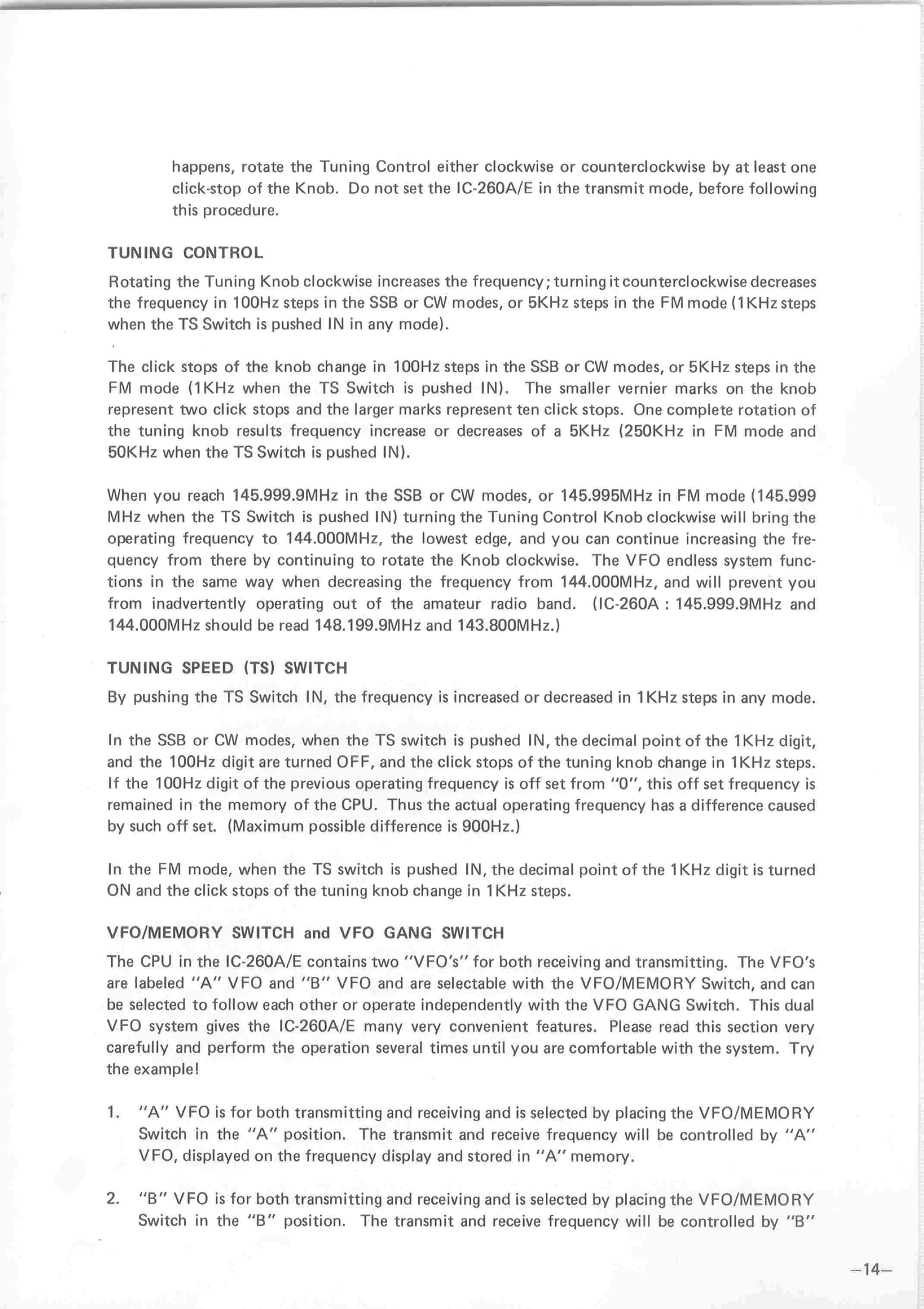

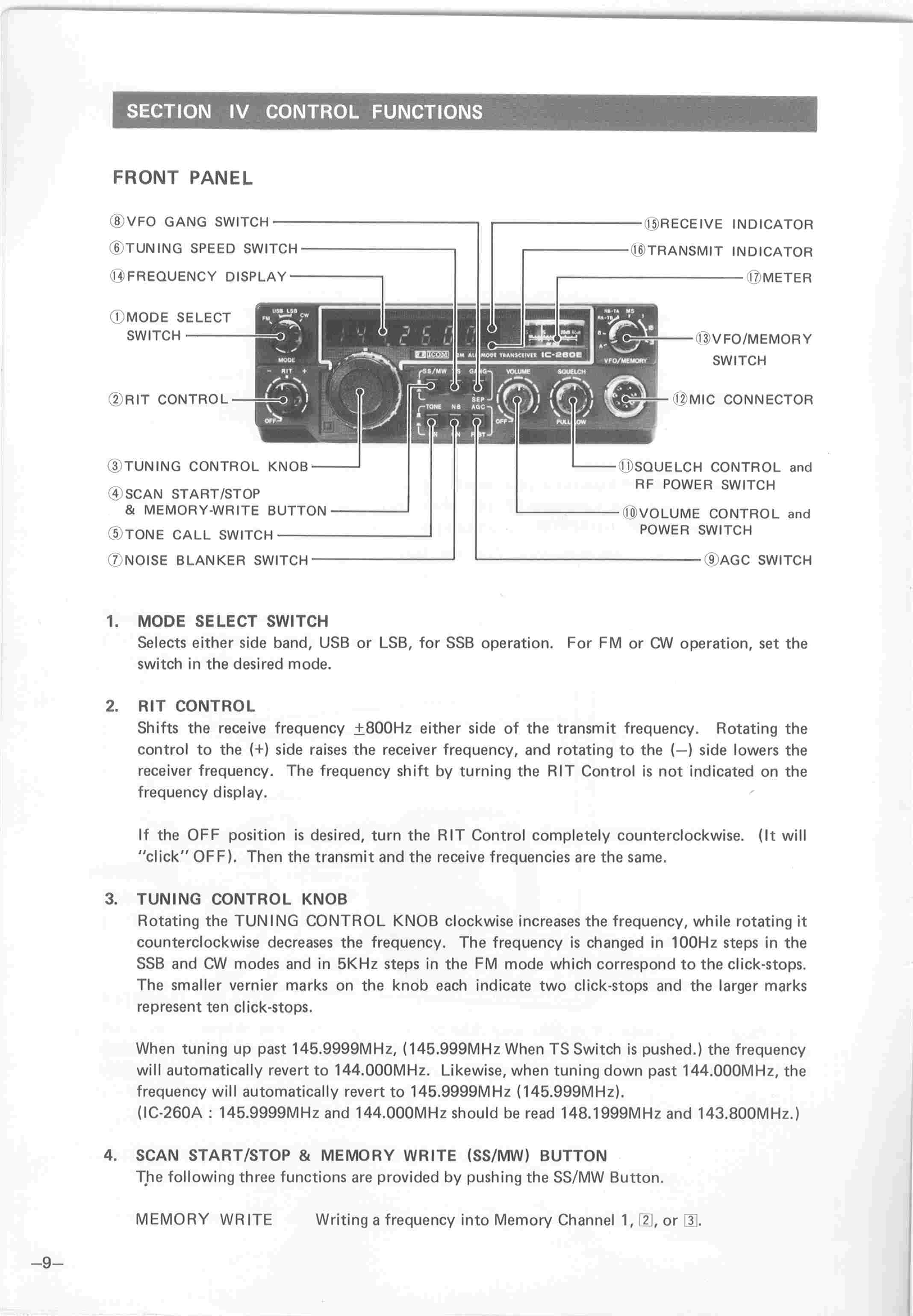

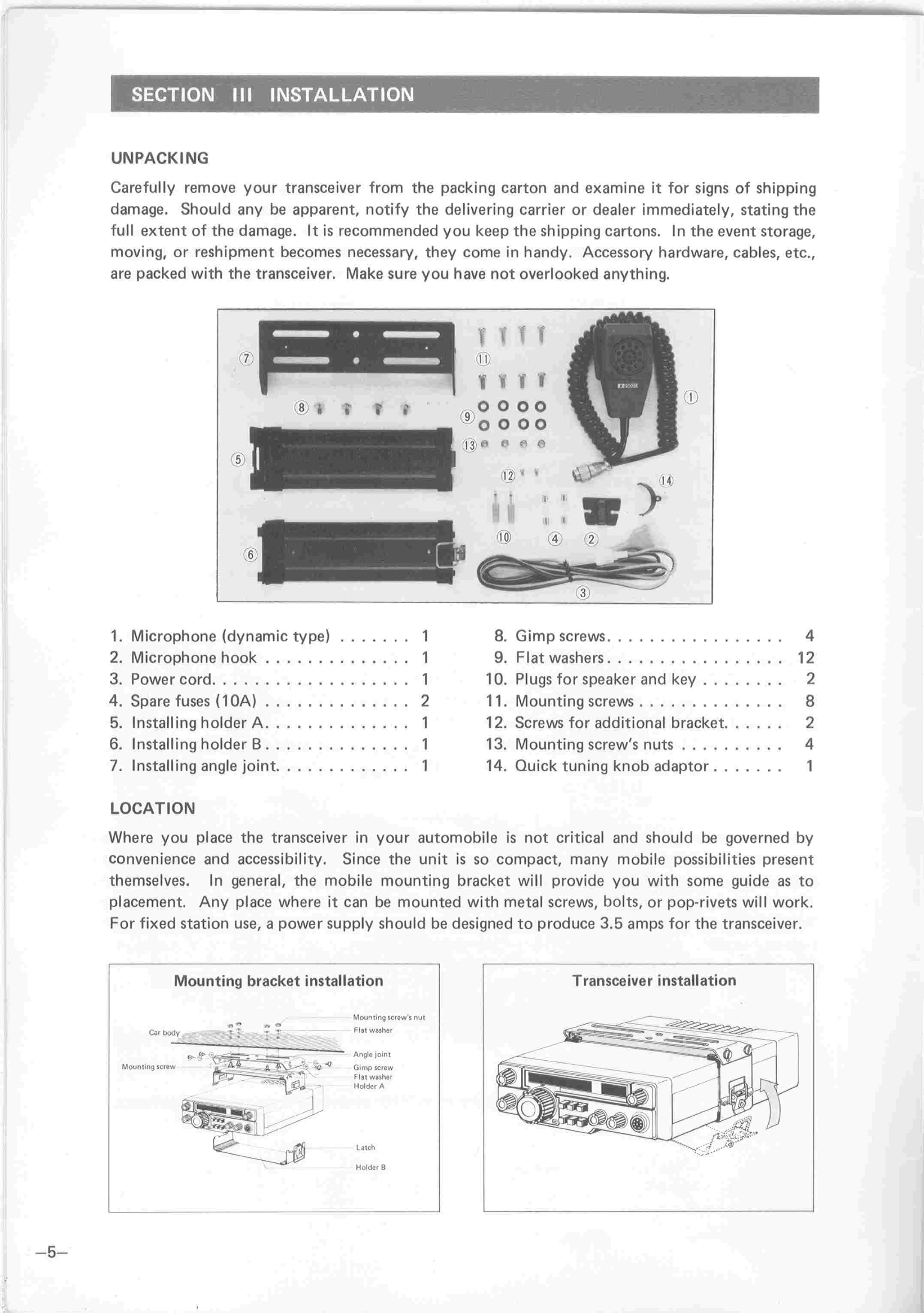

Here are a complete set of scans of the original owner's manual from a US-model Icom IC-260a 2m all-mode transceiver. Please also see the schematics and parts layout page.

These pages were scanned at 300 DPI, and are designed to be printed out rather than viewed online, so that you can print out your own manual. Each page is a JPEG image, between about 150 and 220 kB, except the alternate page 34, which is a 3 MB GIF.

Complete sets of these pages are available for those who don't want to download each page individually:

• ic-260-manual.zip - ZIP format, about 8 MB
• ic-260-manual.tar.gz - GZIP'd tarball, about 8 MB

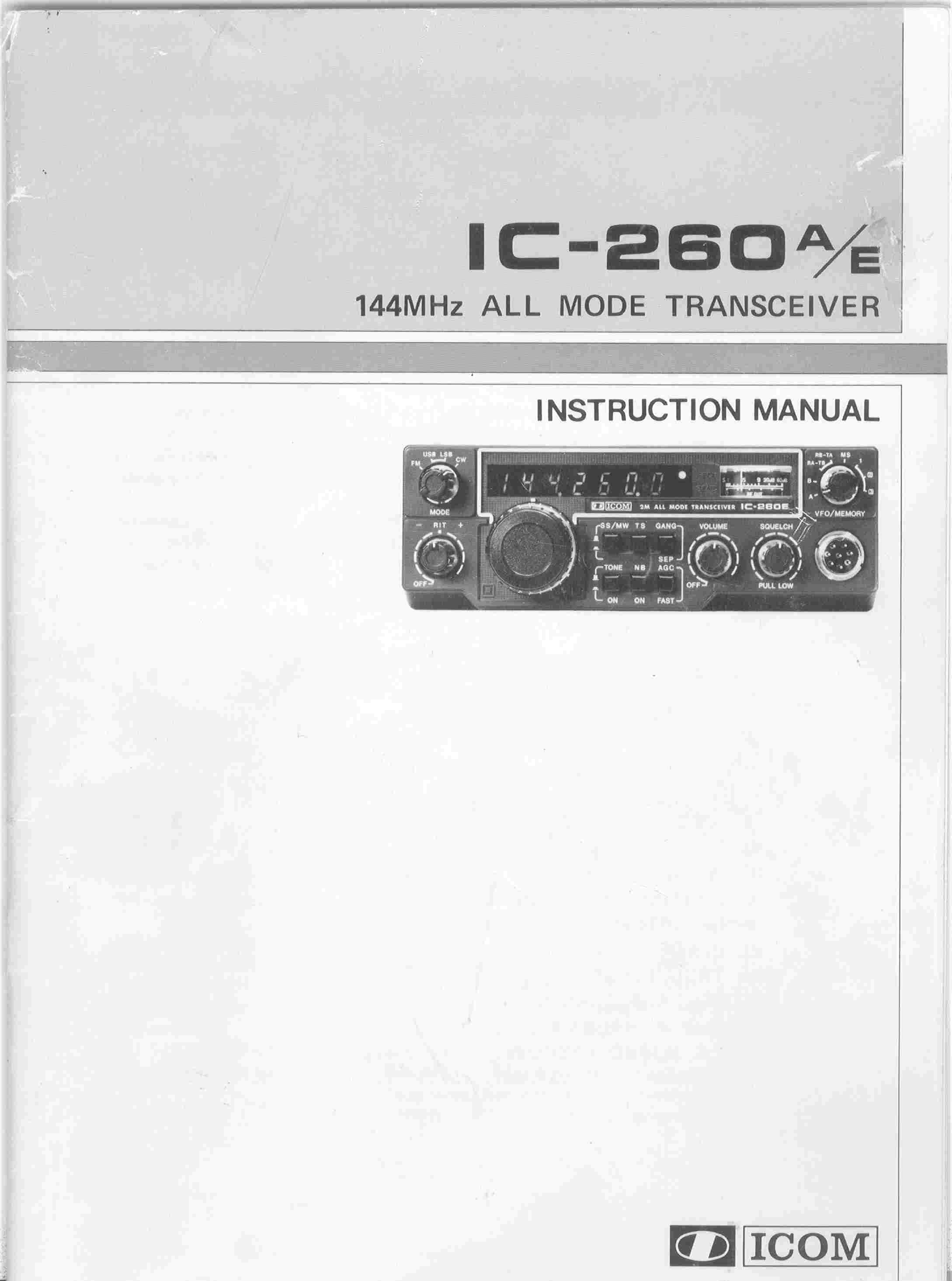

Front cover	Cover
Index	Page 1

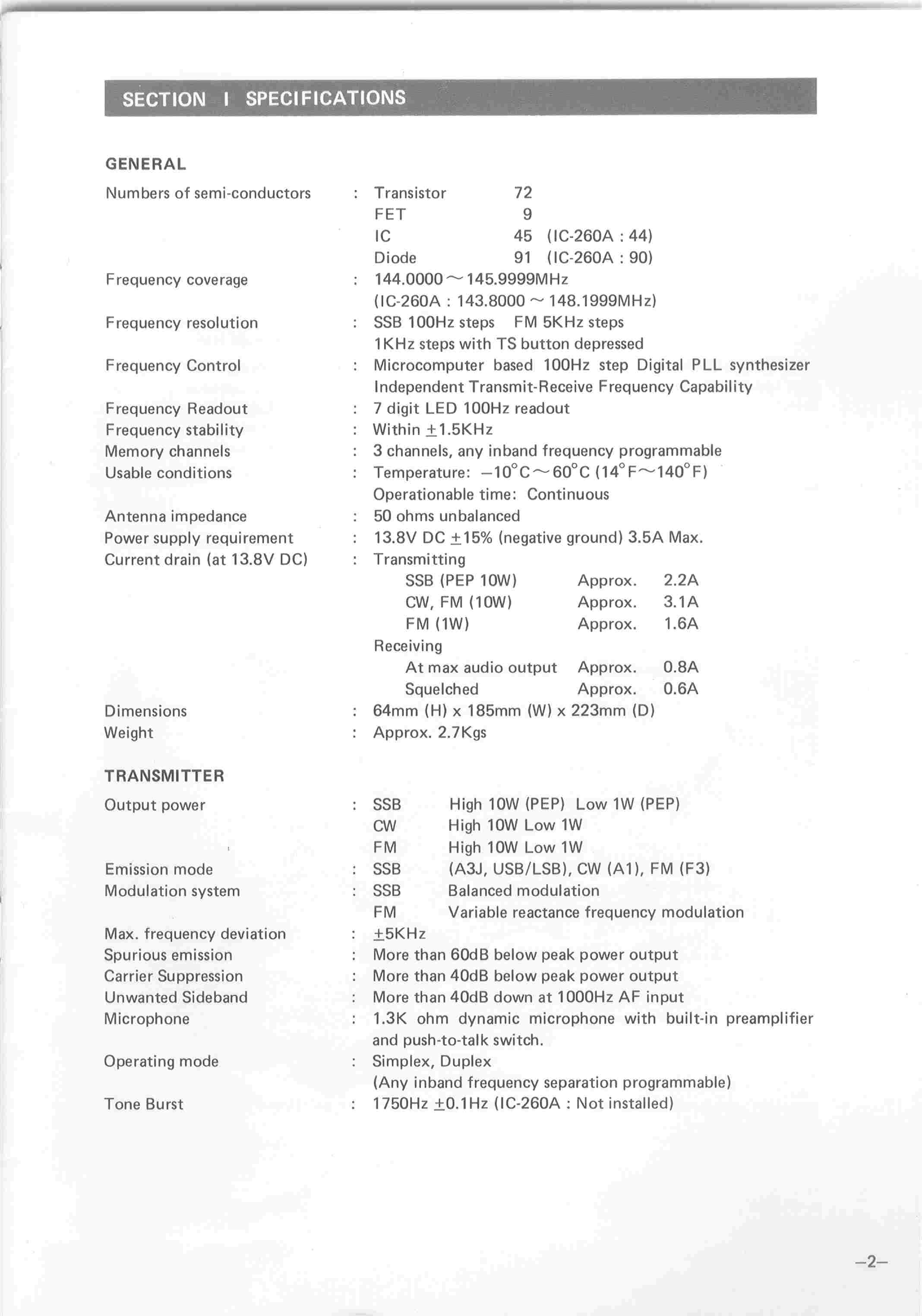

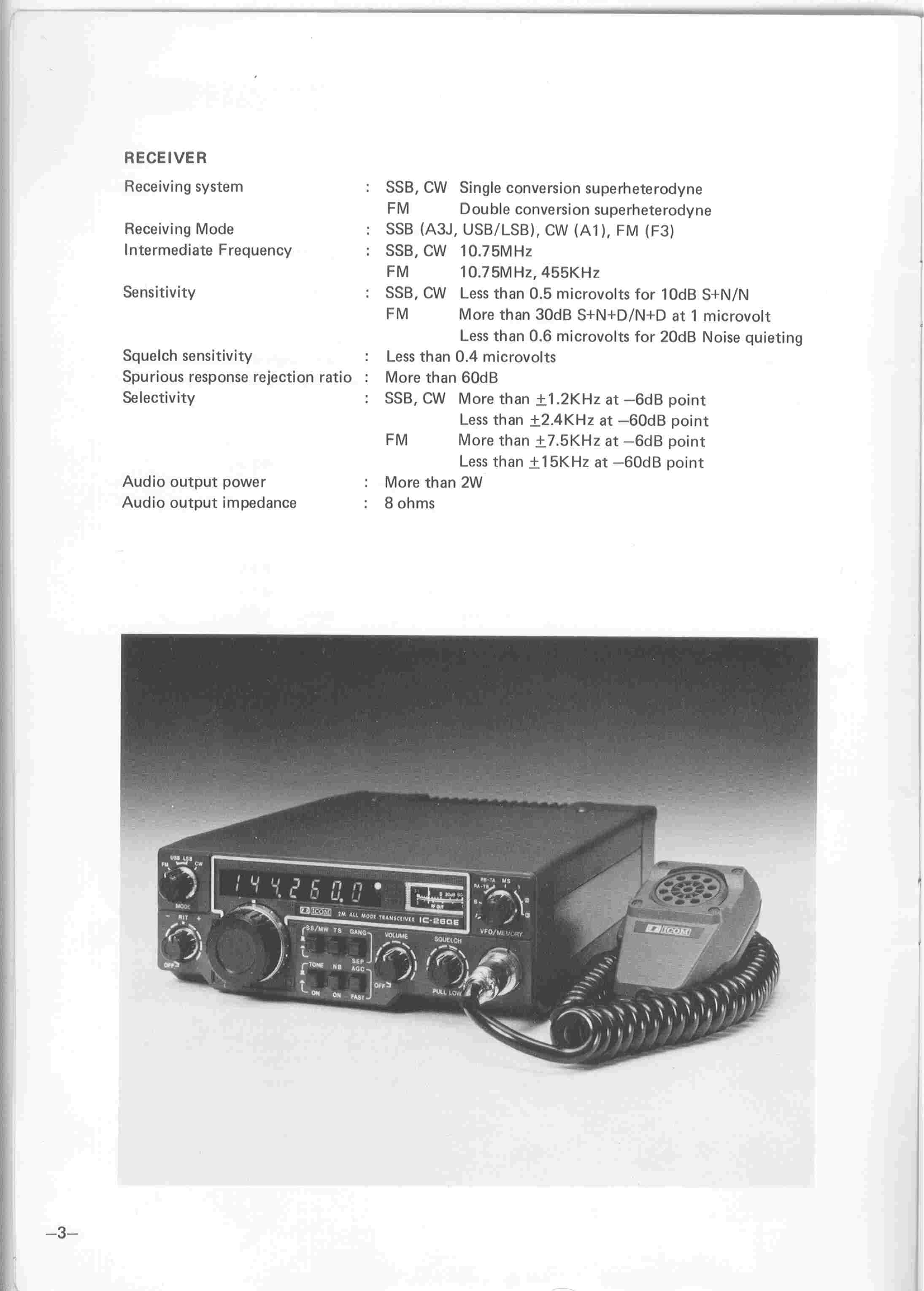

Specifications	Page 2 Page 3

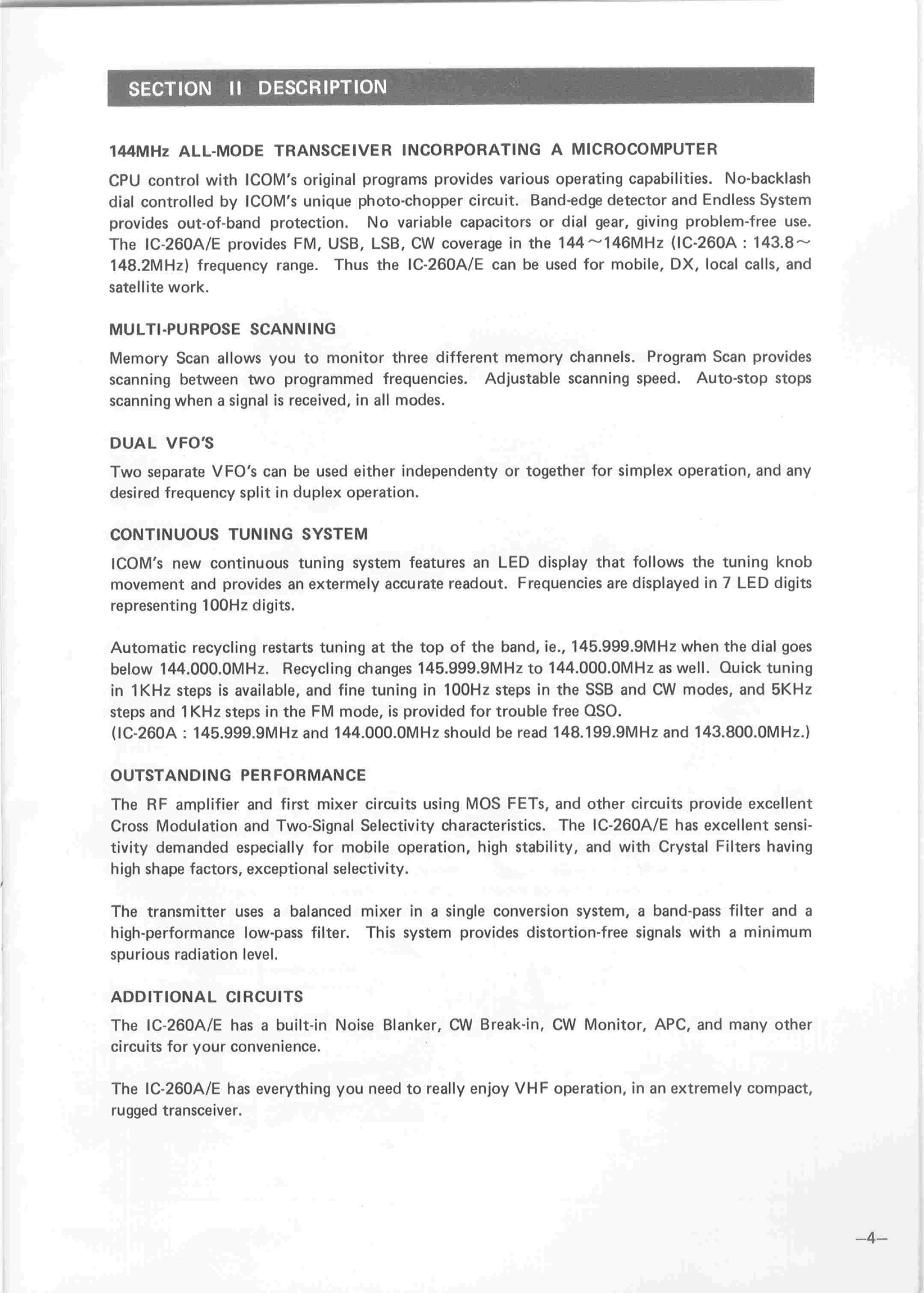

Description	Page 4

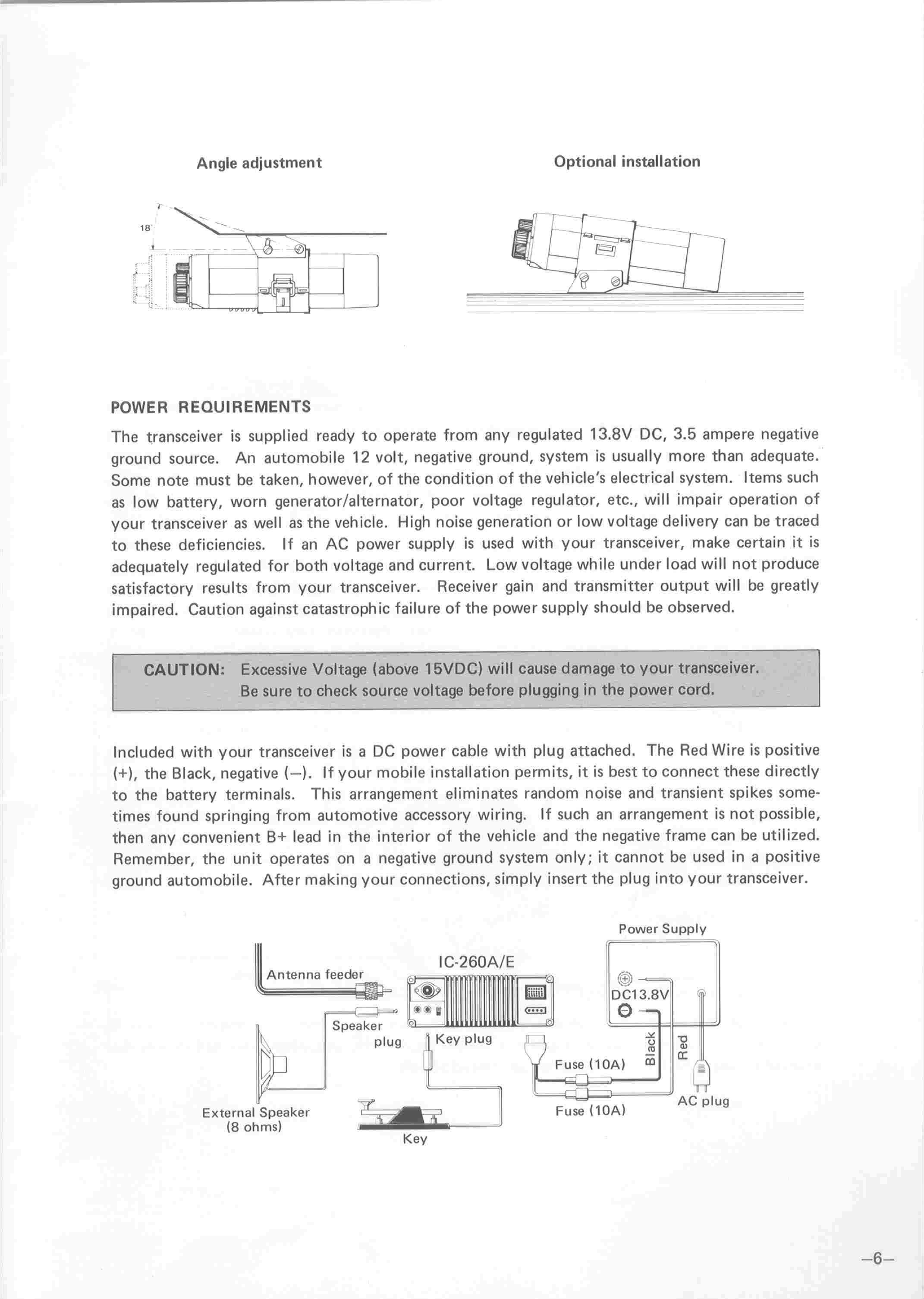

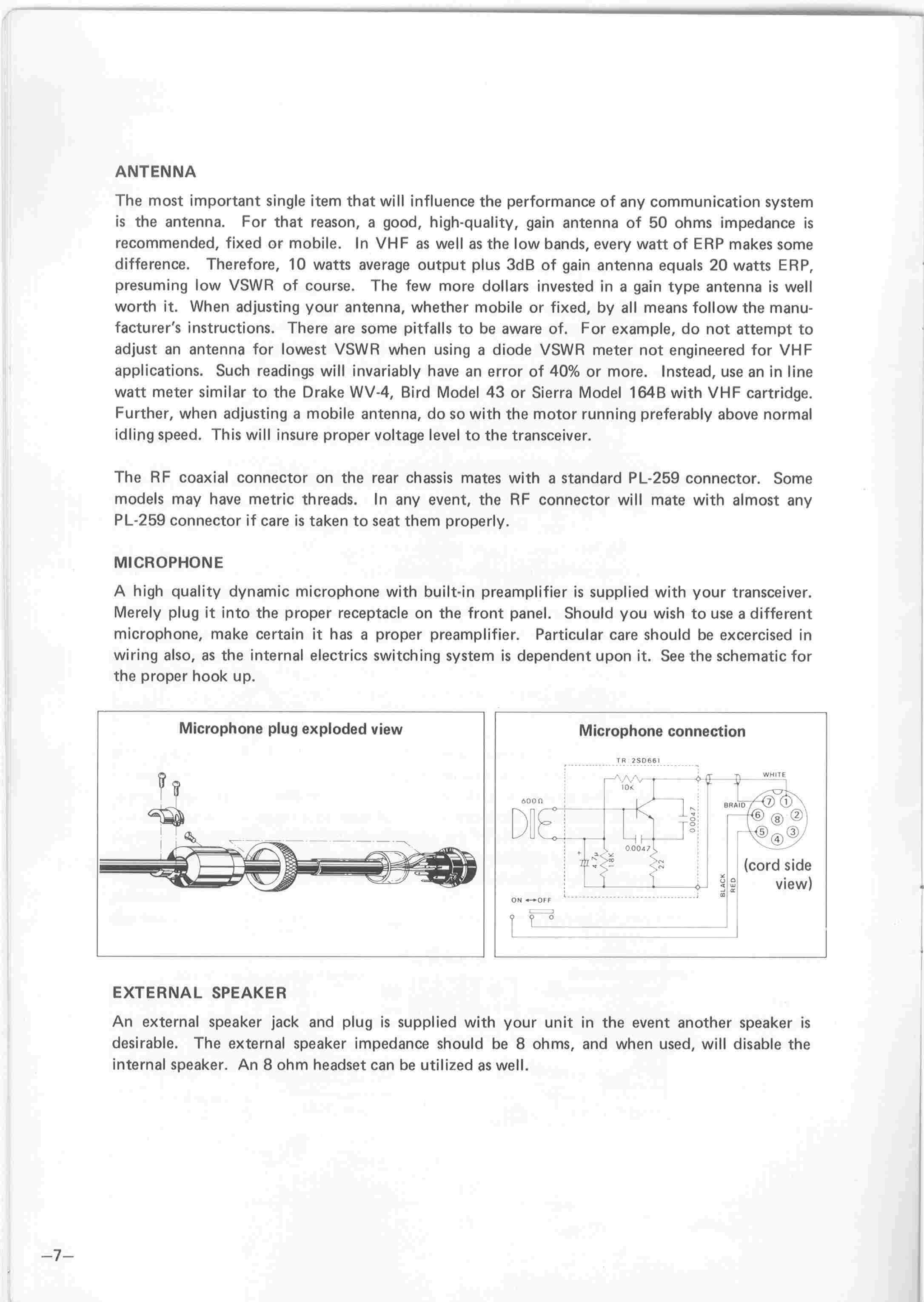

Installation	Page 5 Page 6 Page 7 Page 8

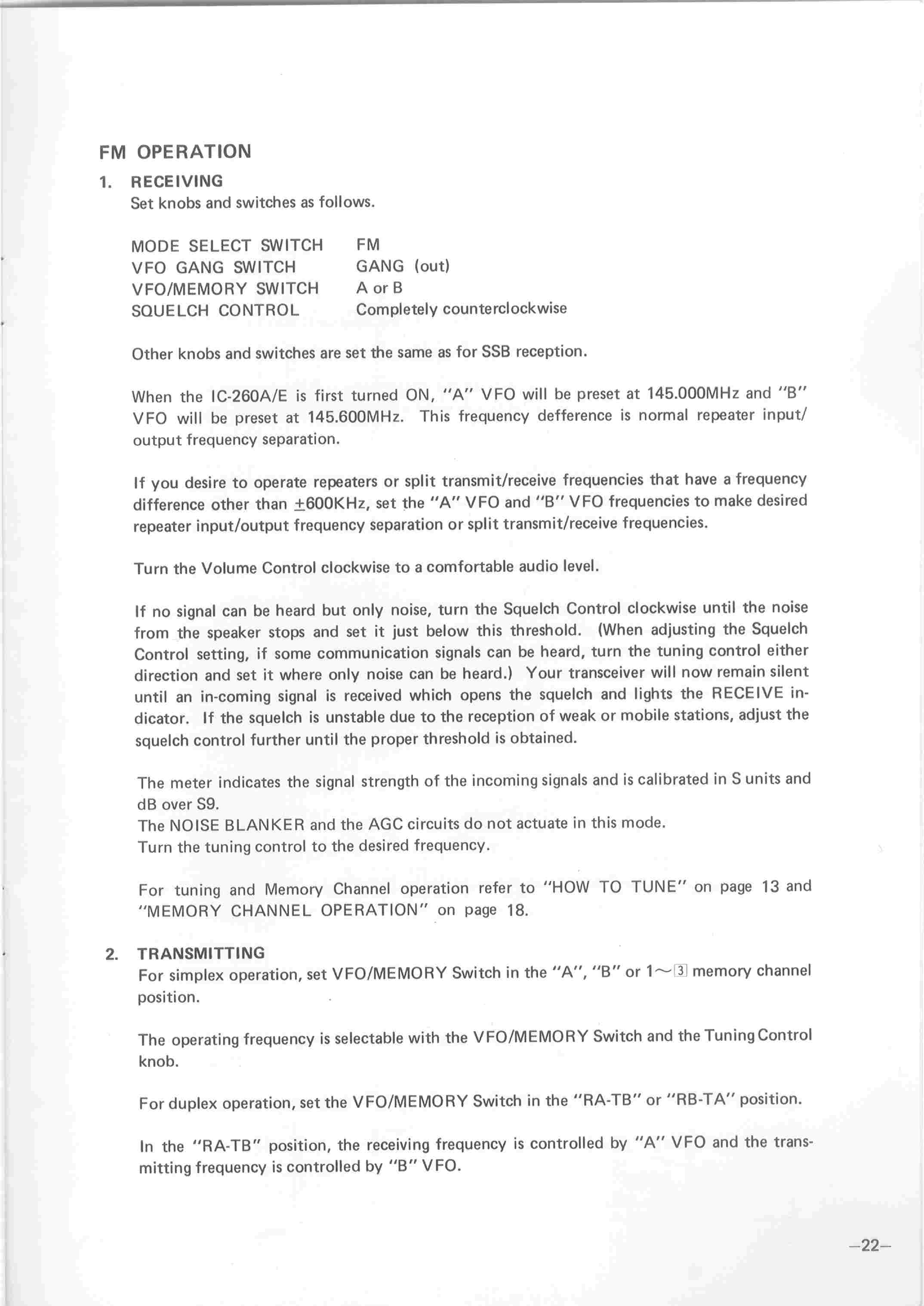

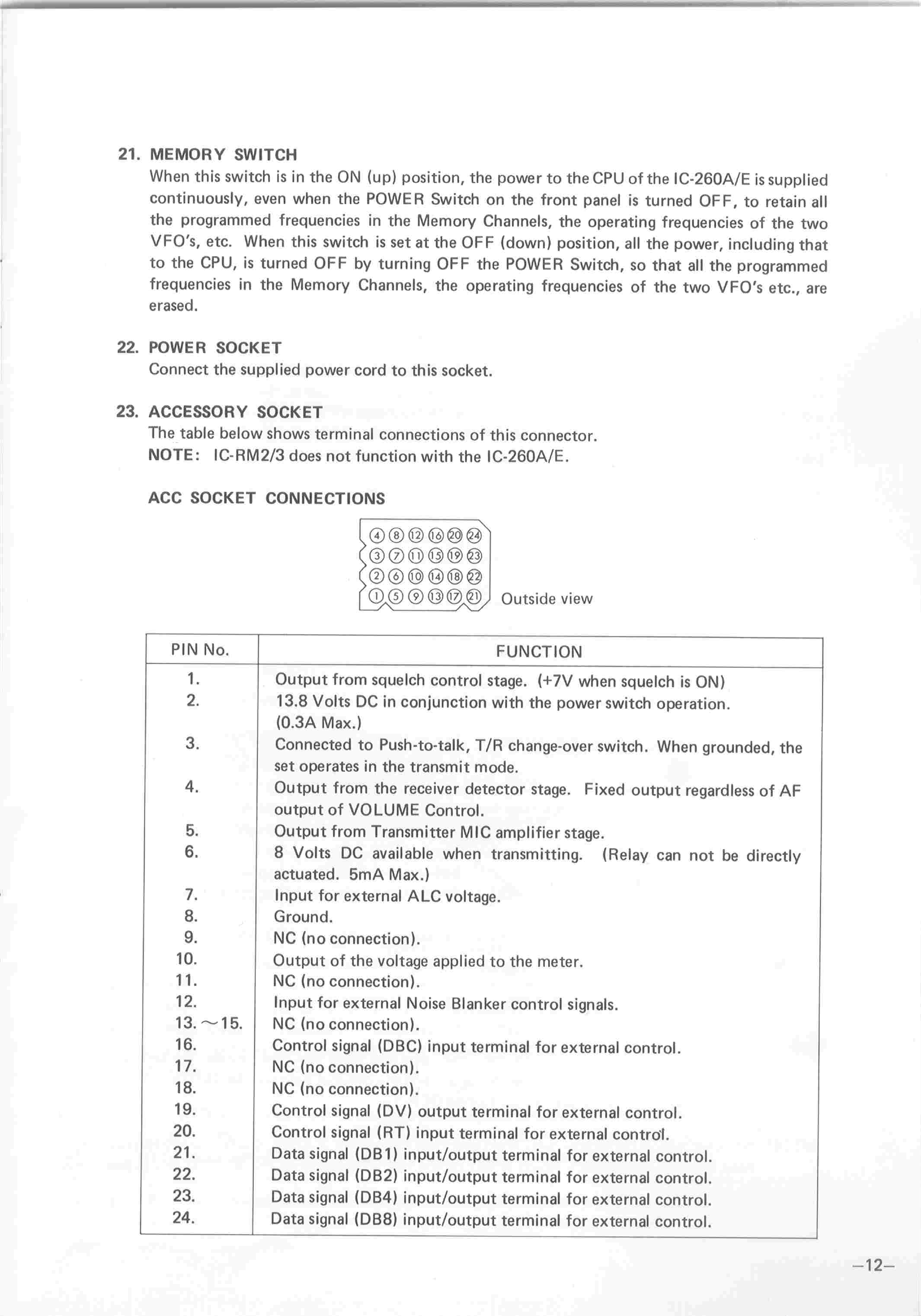

Control Functions	Page 9 Page 10 Page 11 Page 12

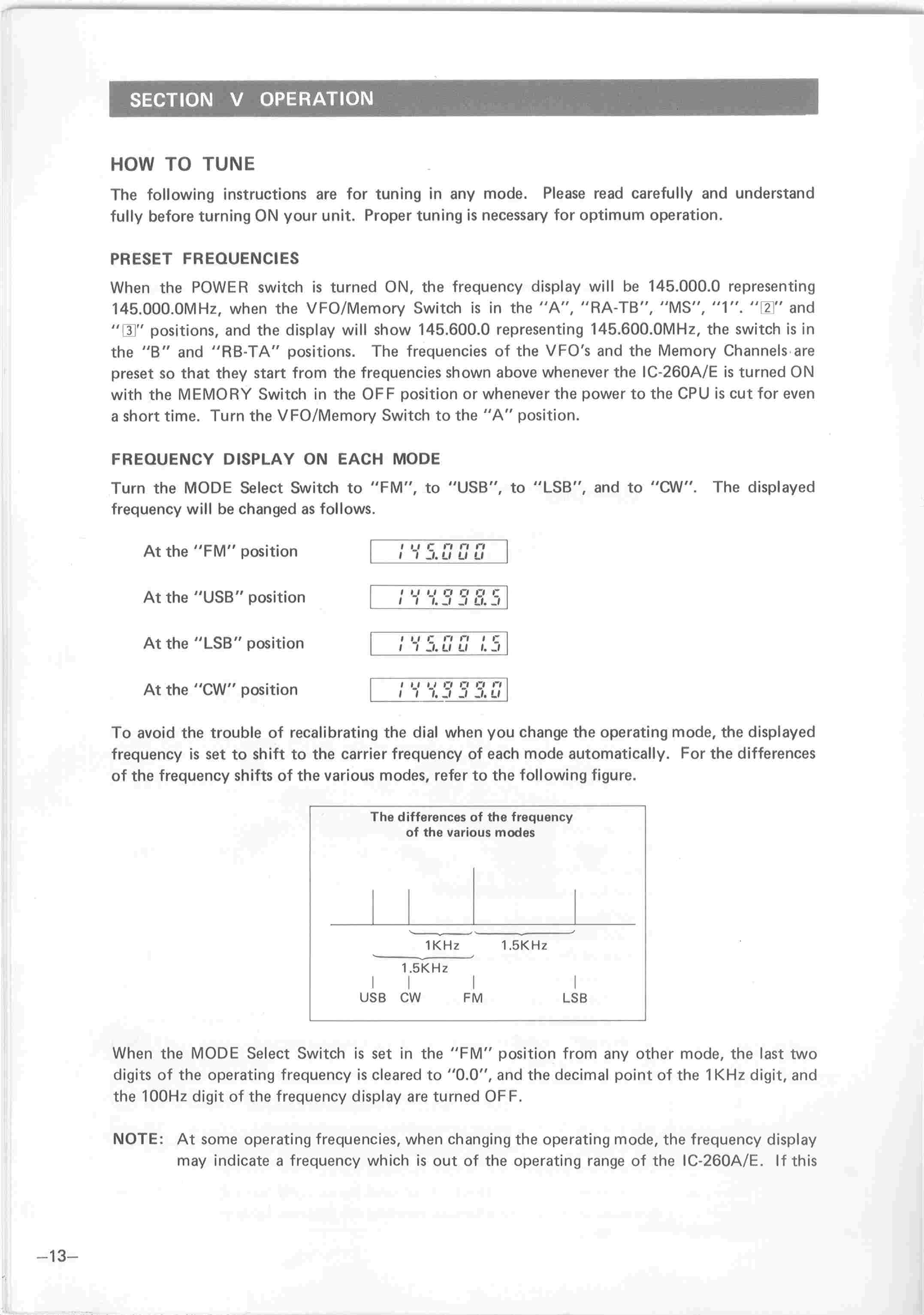

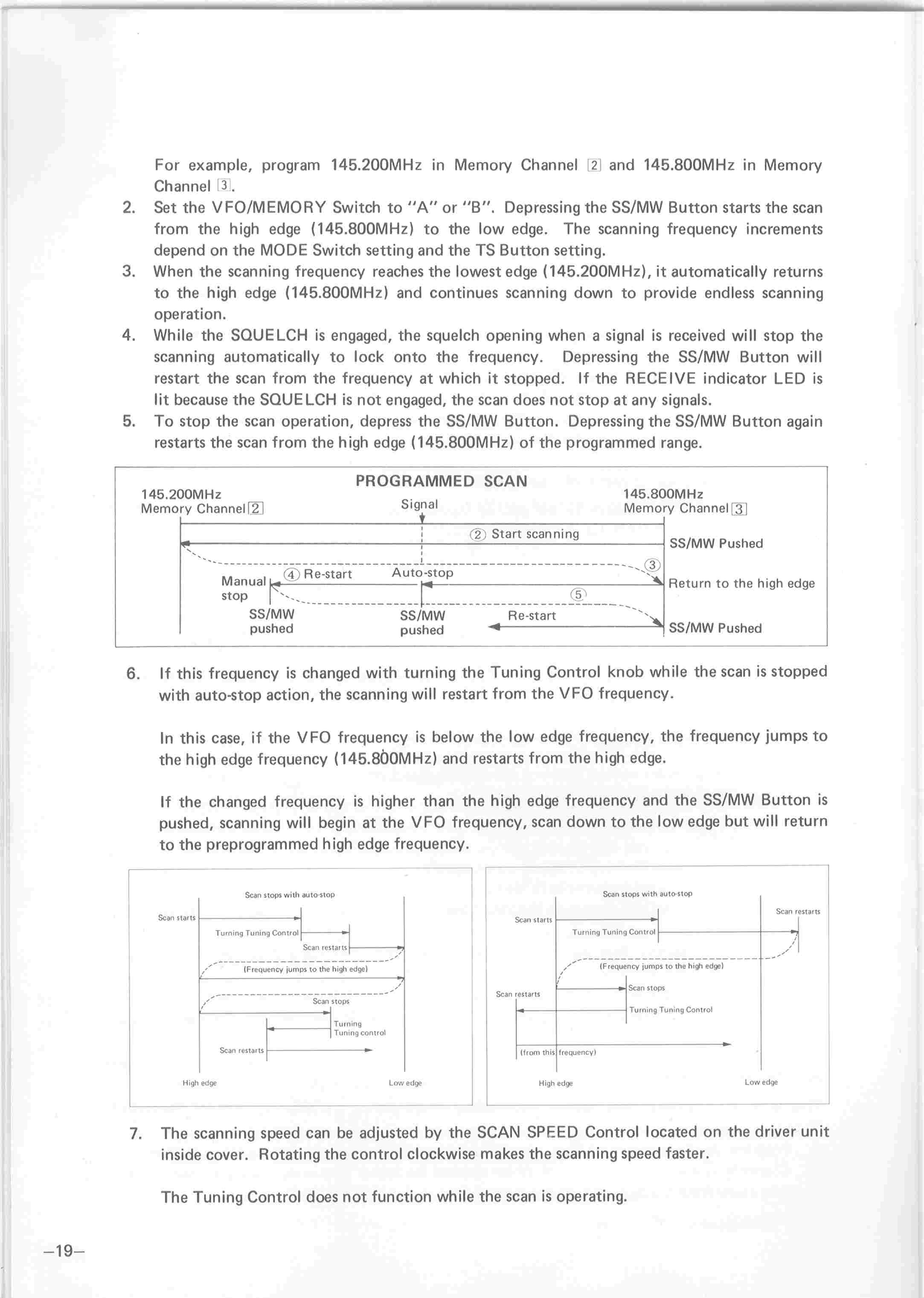

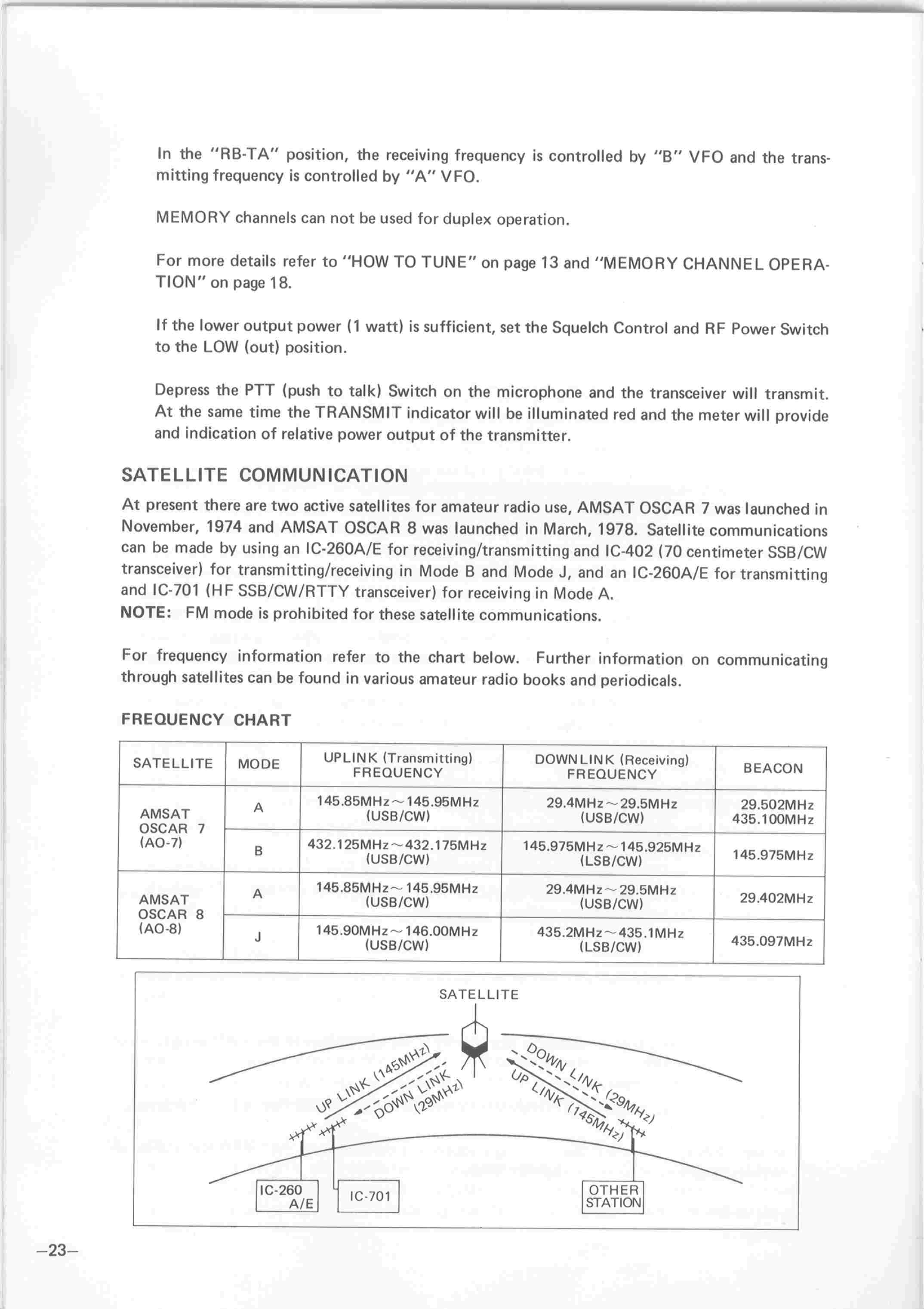

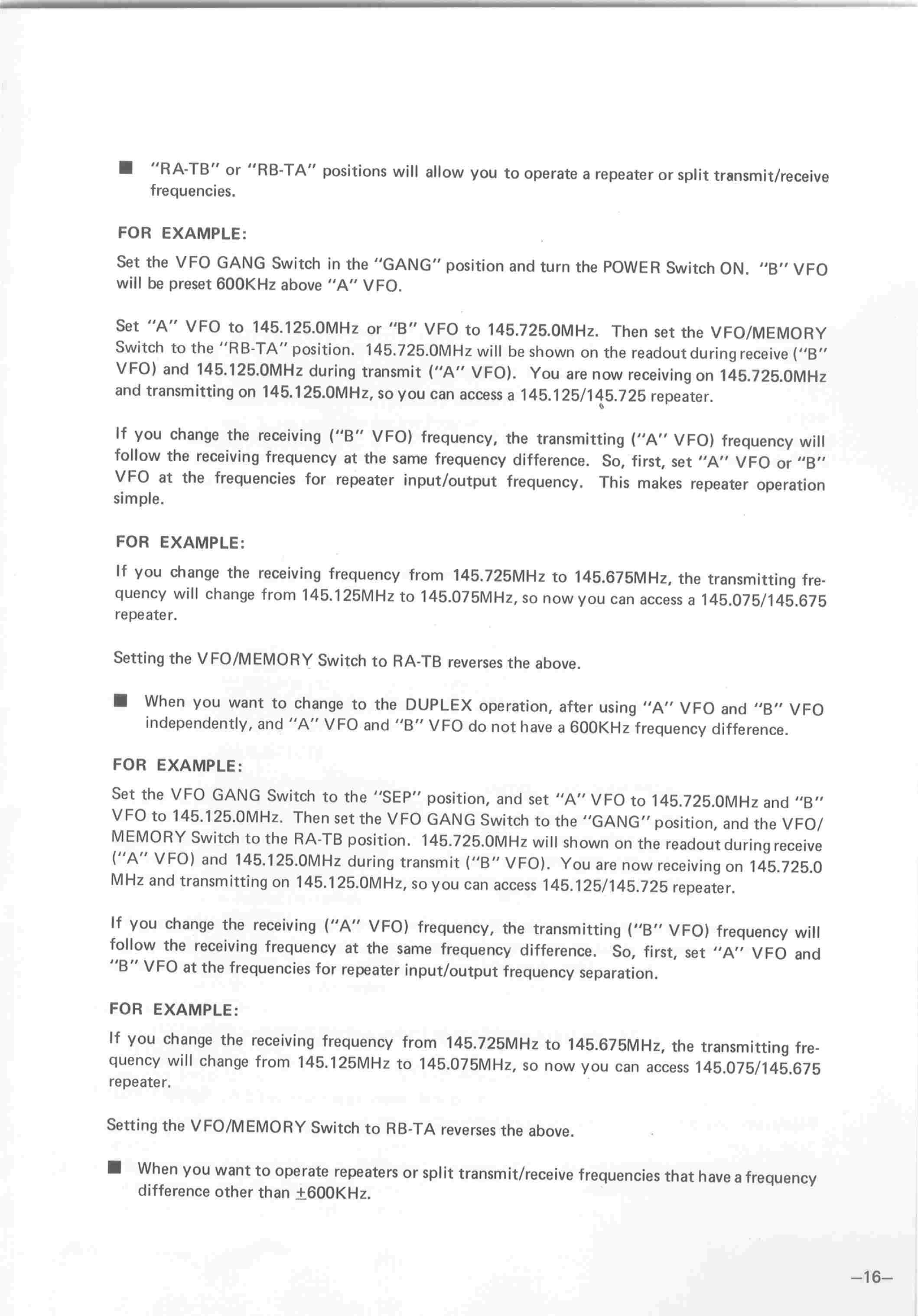

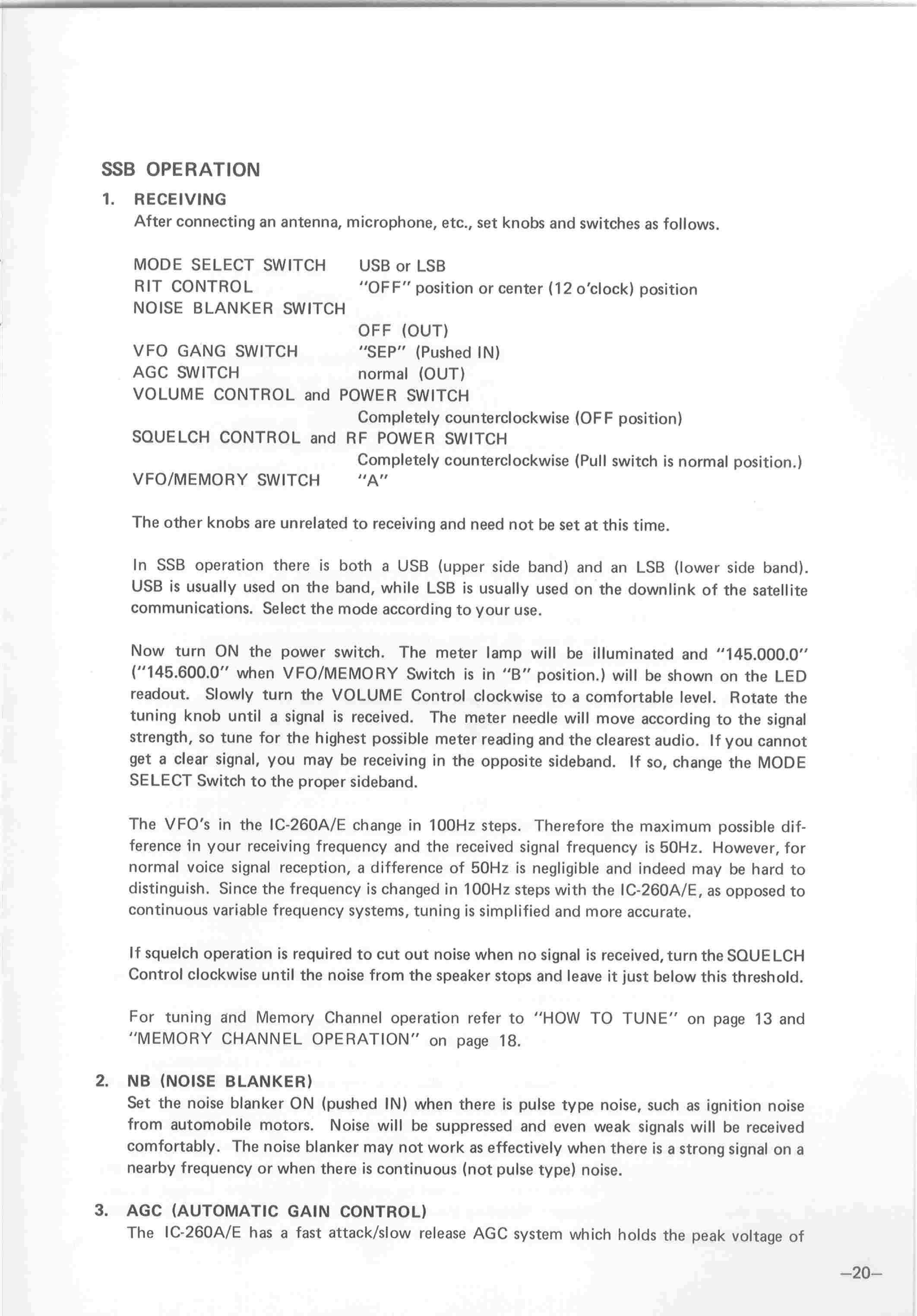

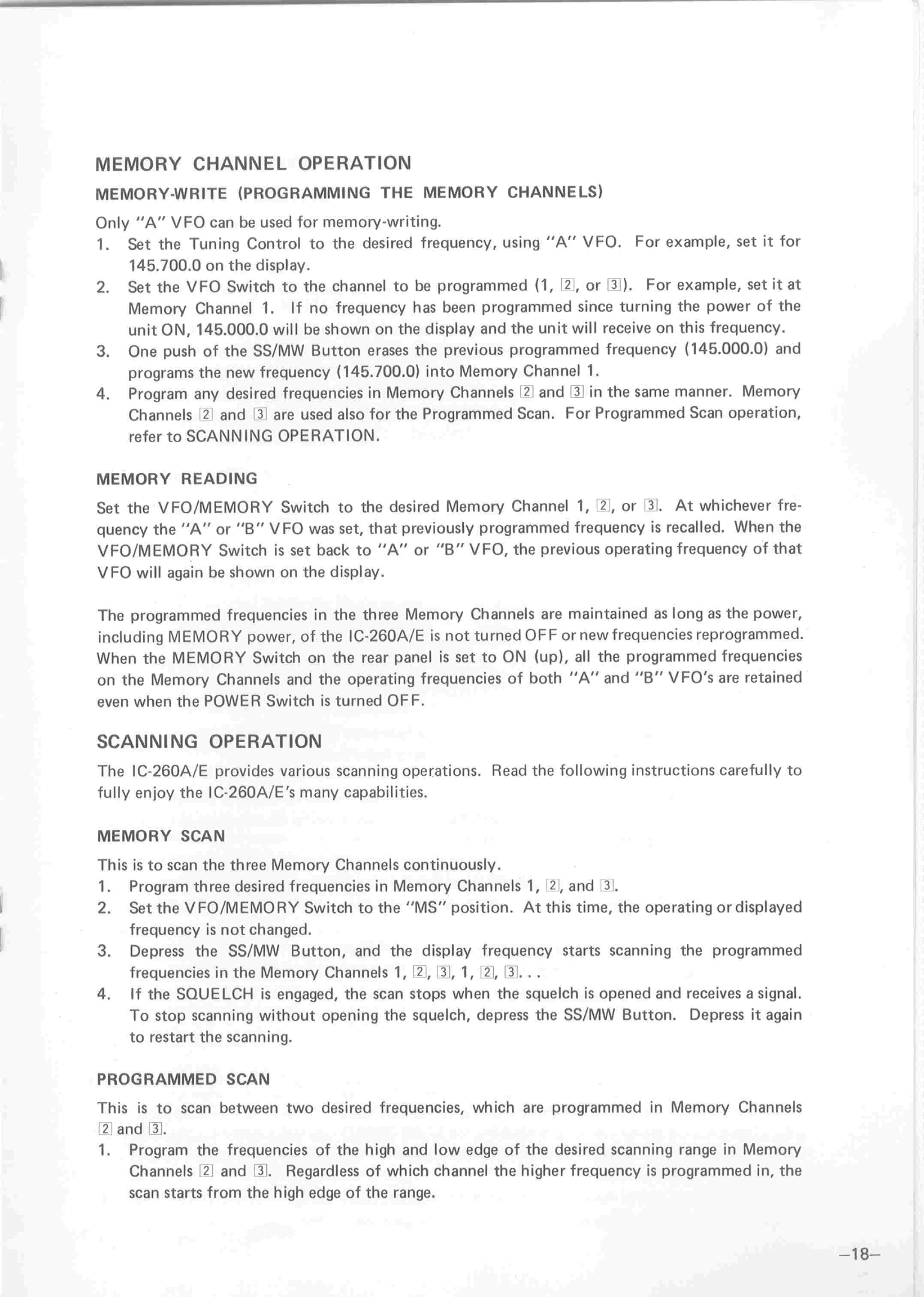

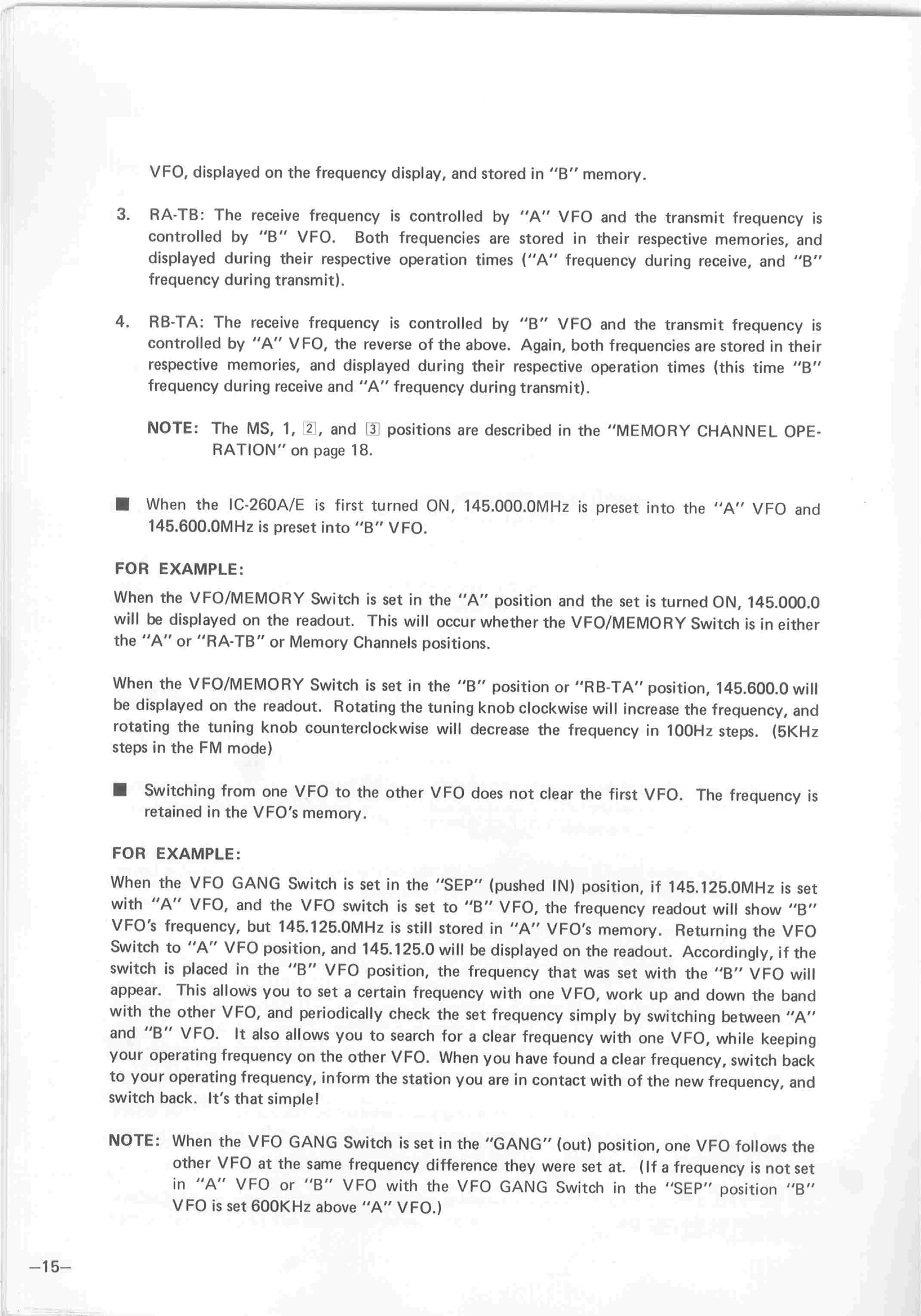

Operation	Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23
Inside View	Page 24 Page 25

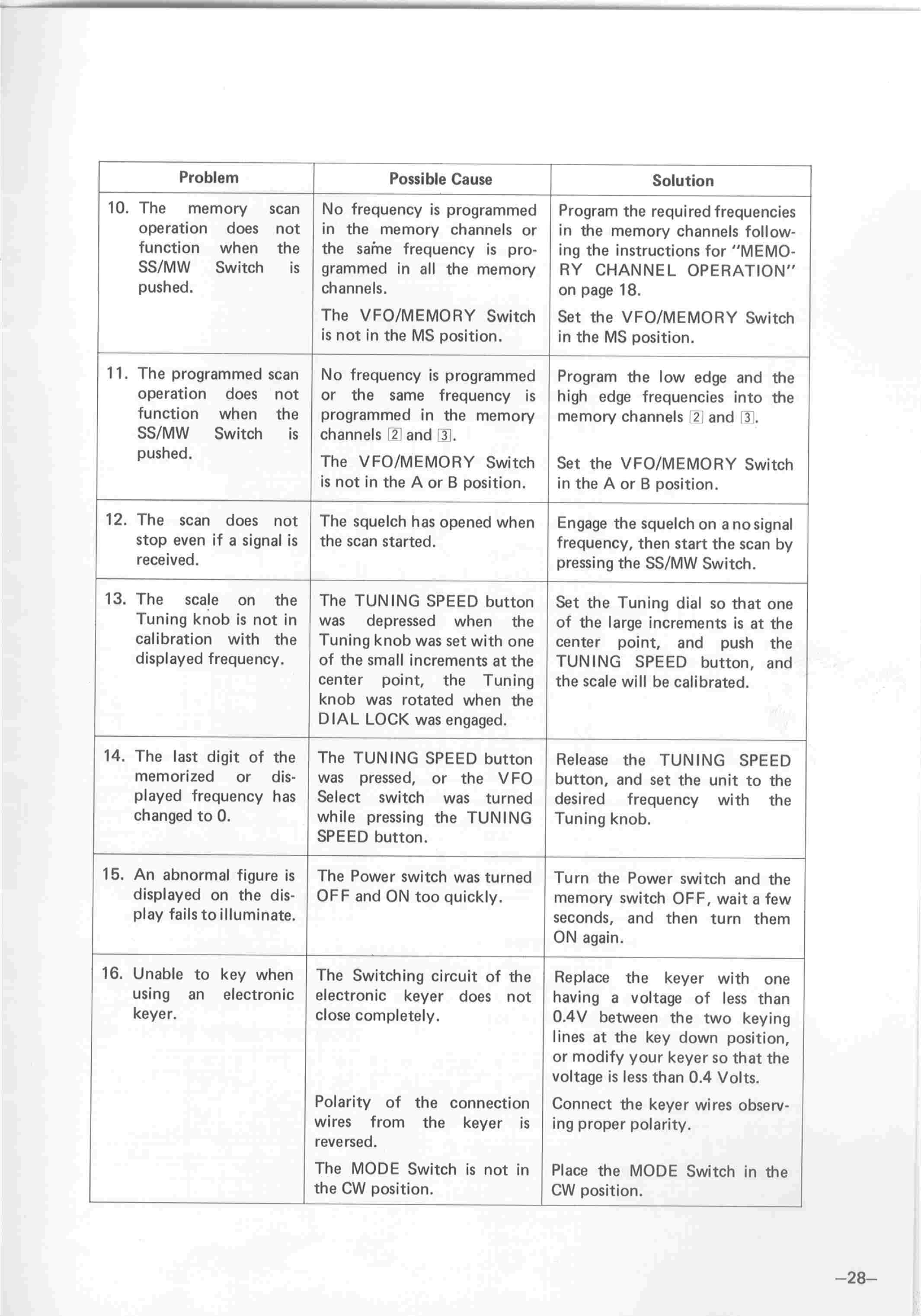

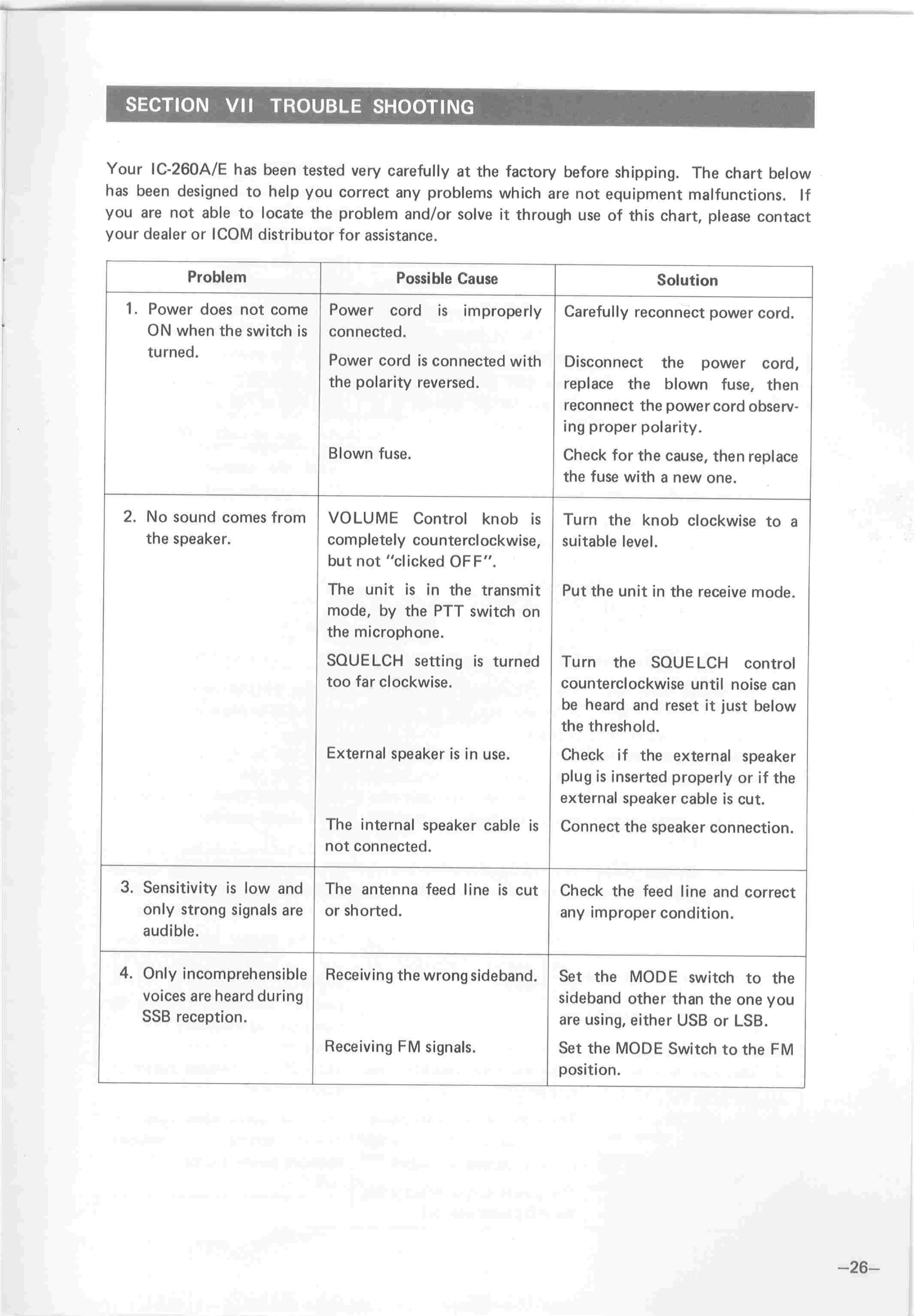

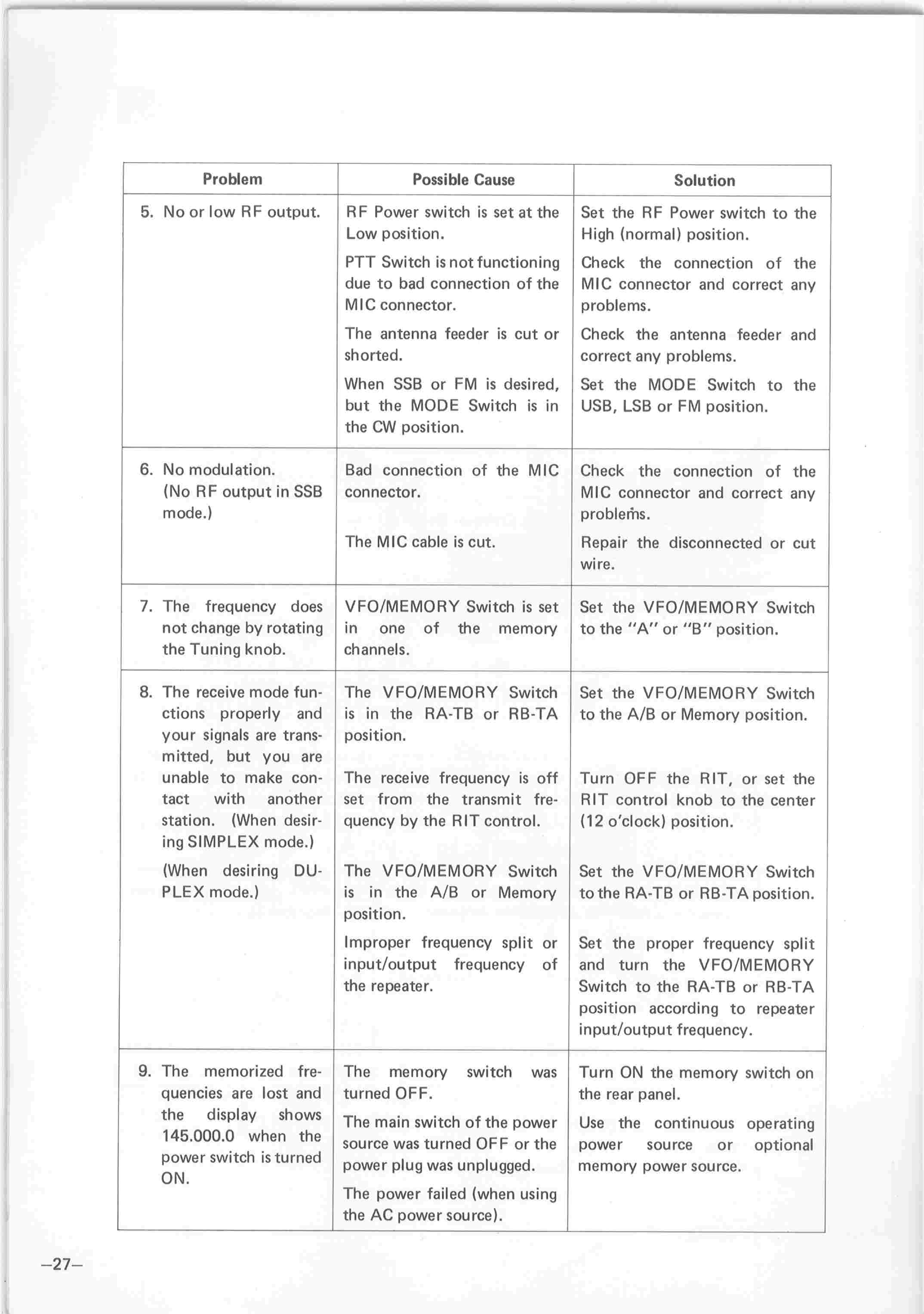

Troubleshooting	Page 26 Page 27 Page 28

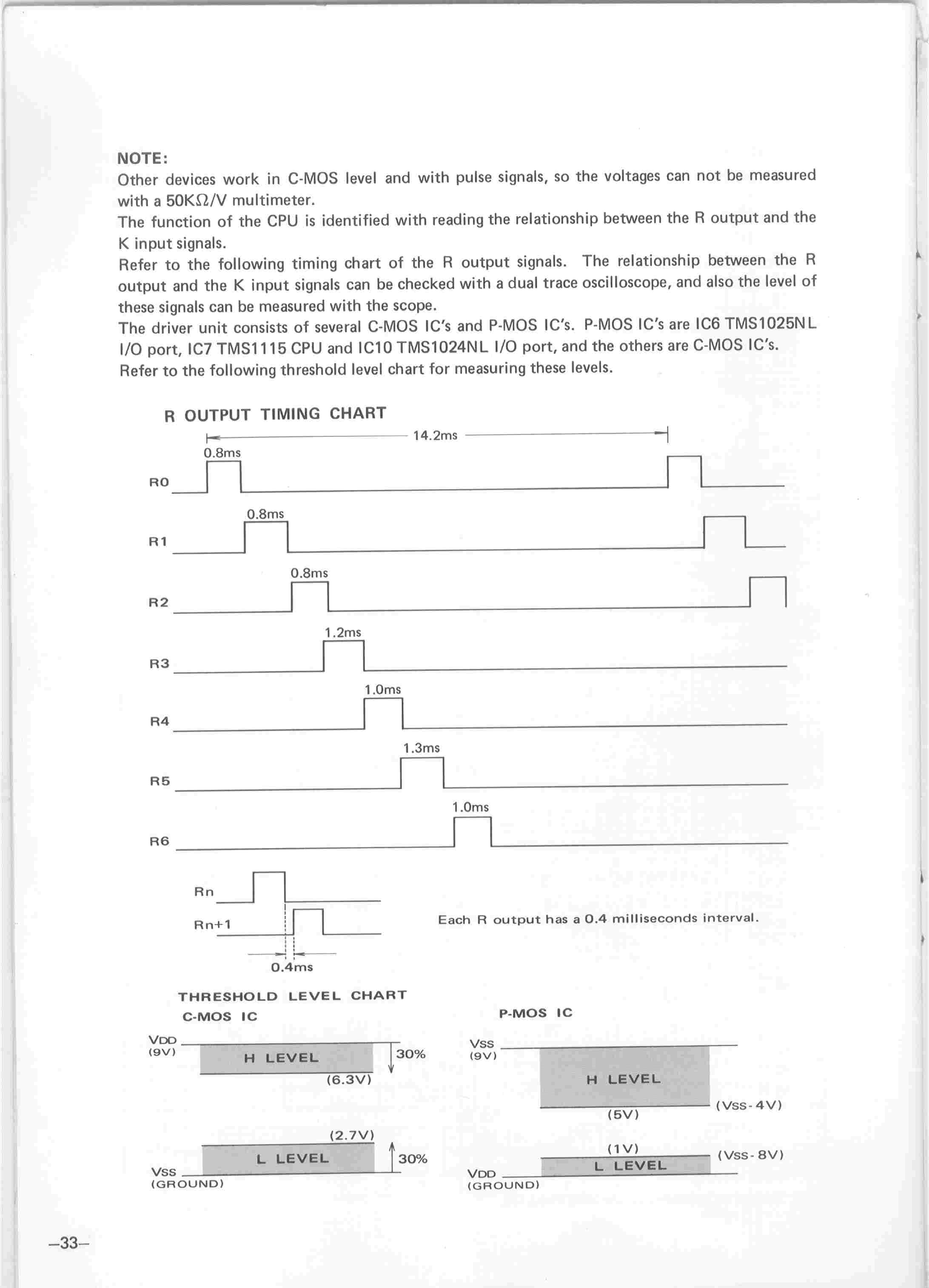

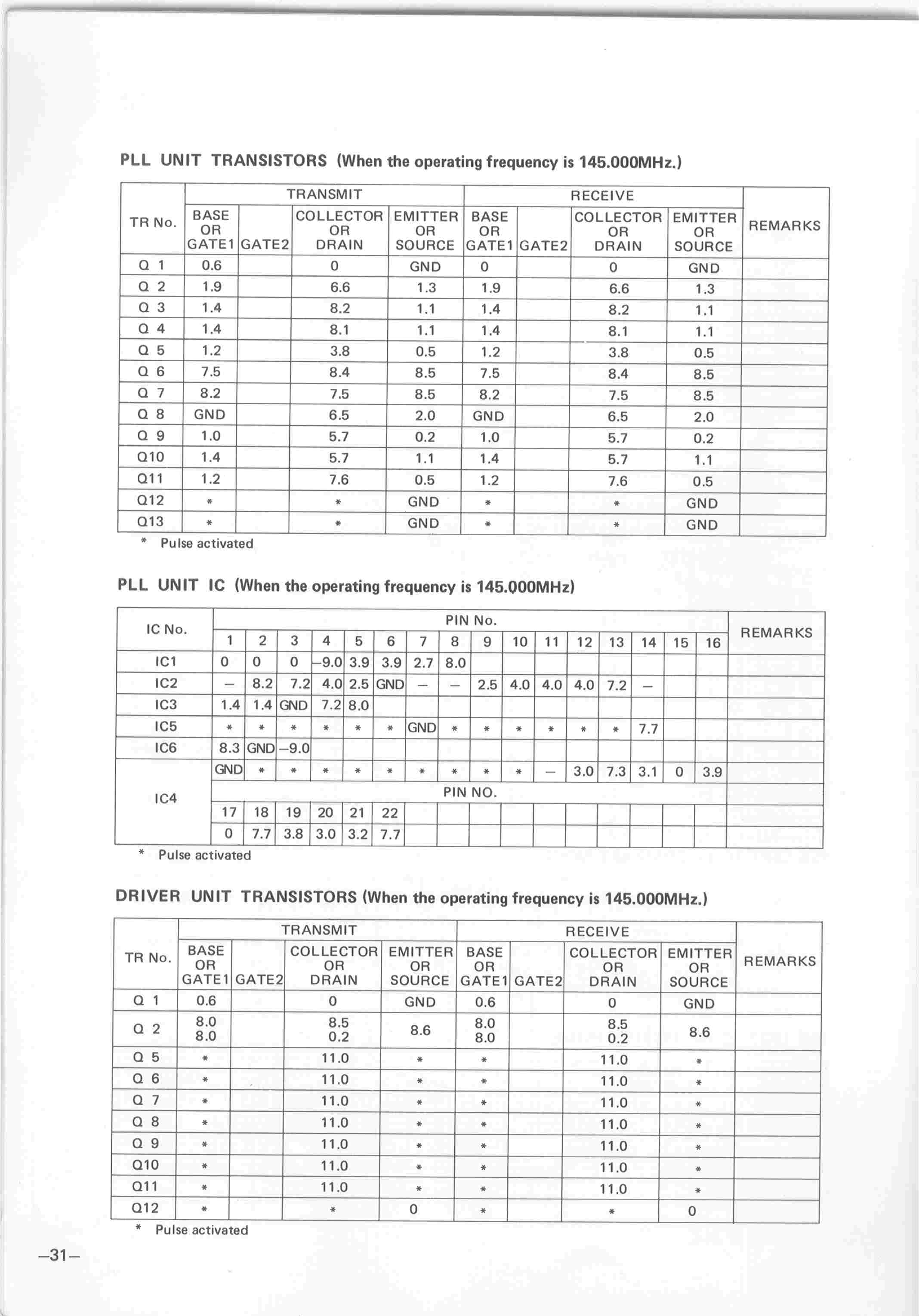

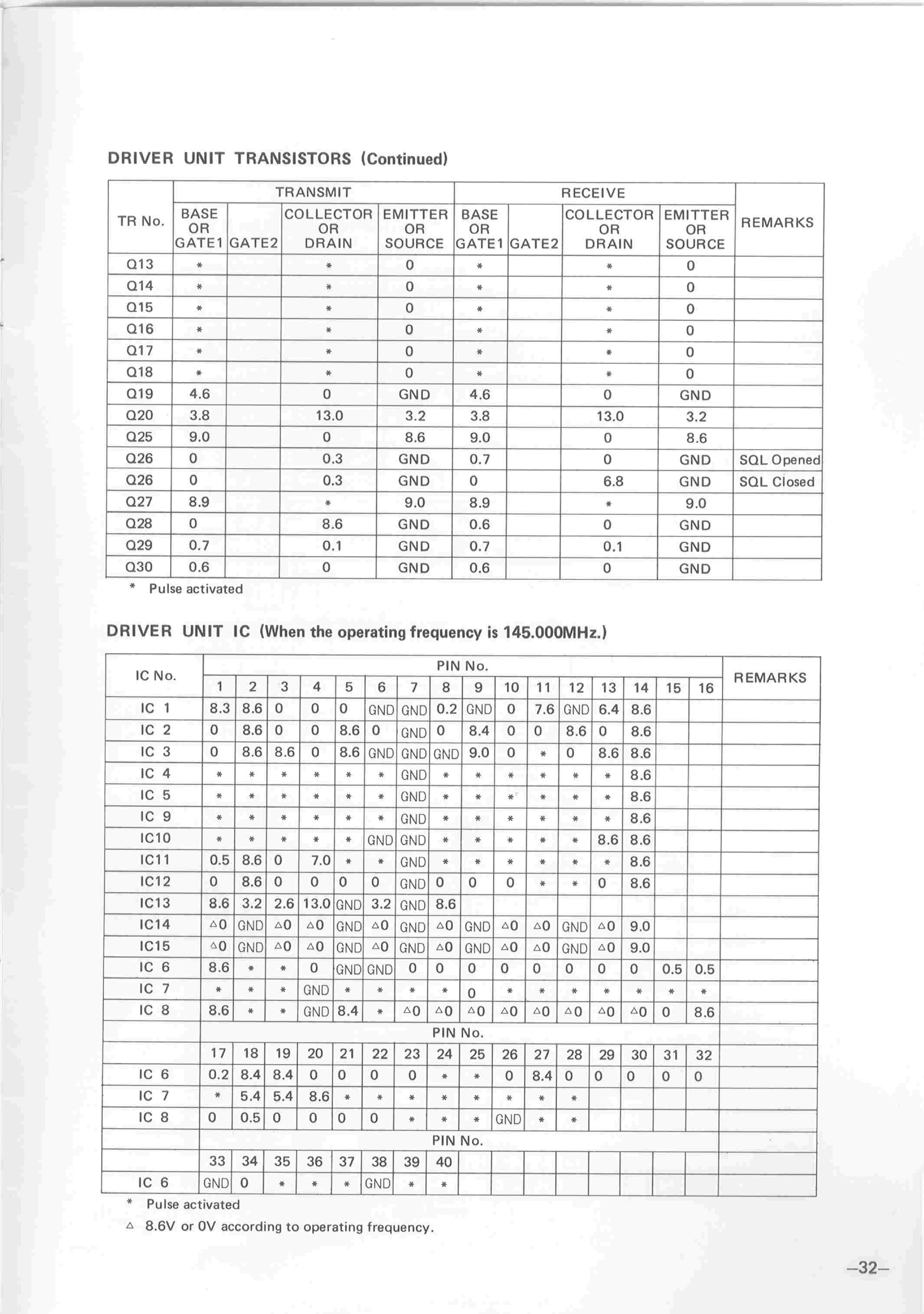

Voltage Charts	Page 29 Page 30 Page 31 Page 32 Page 33

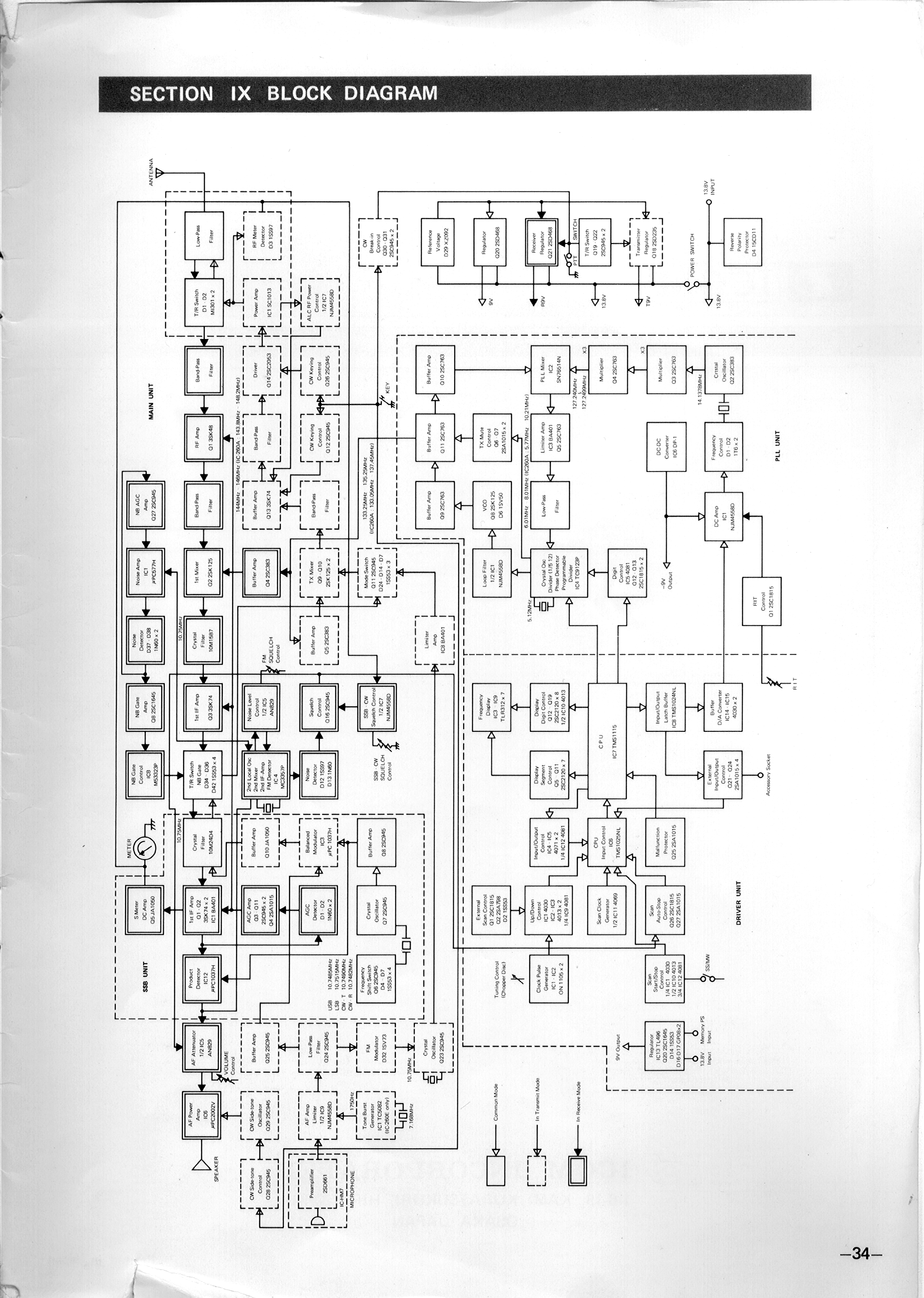

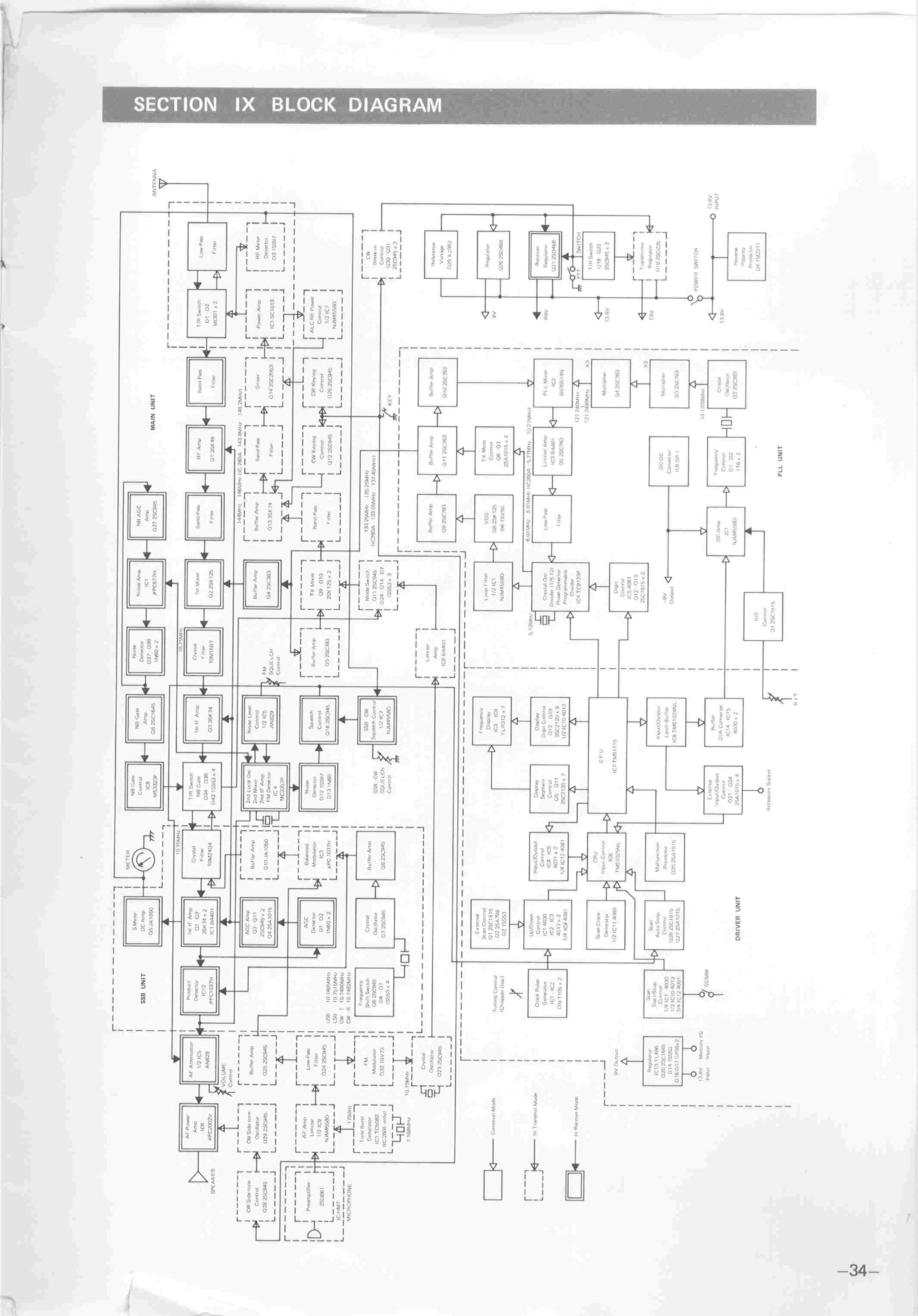

Block Diagram	Page 34 Clearer Page 34 (3 MB)

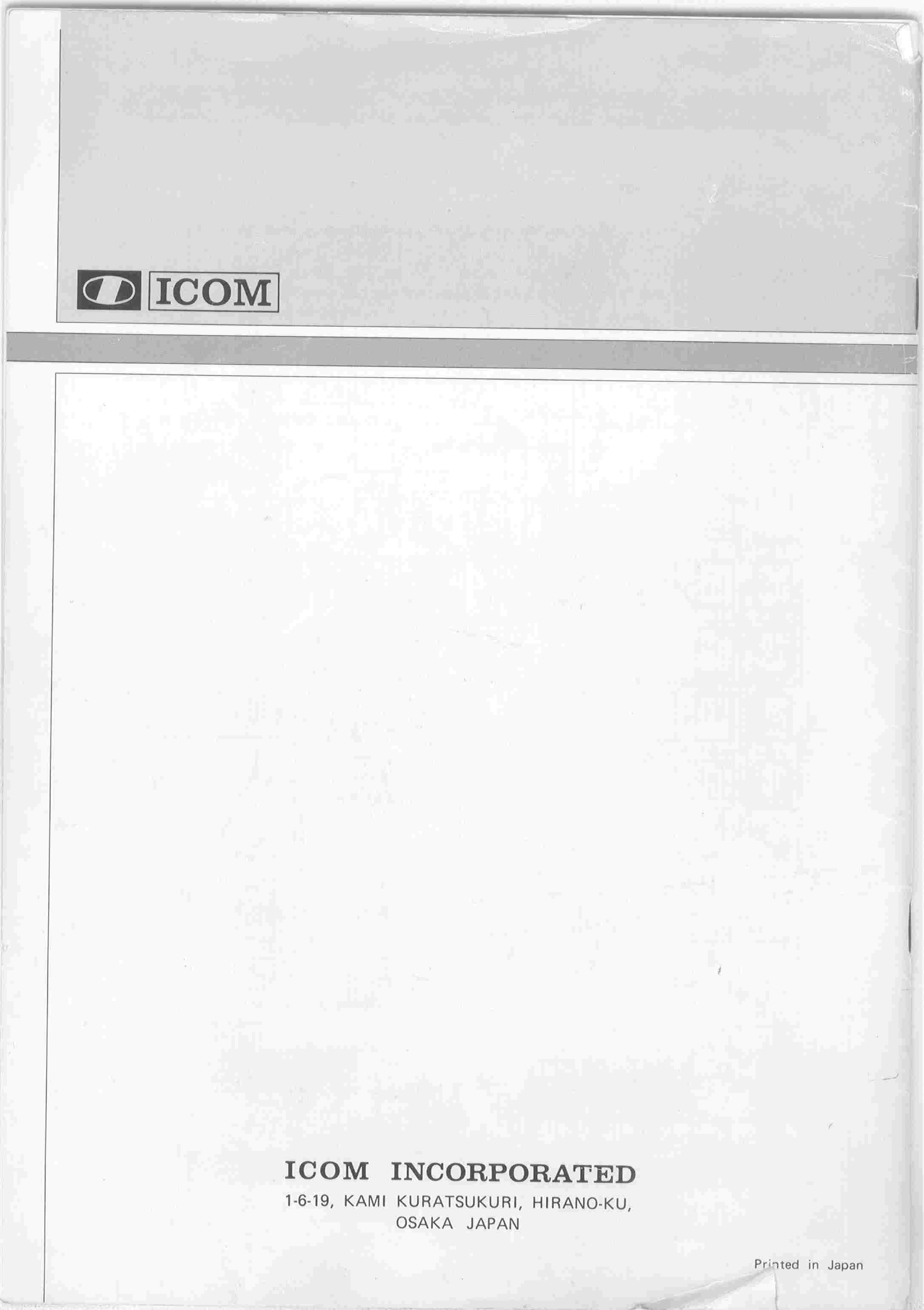

Back Cover	Back

Created by Ian Johnston. Questions? Please mail me.
