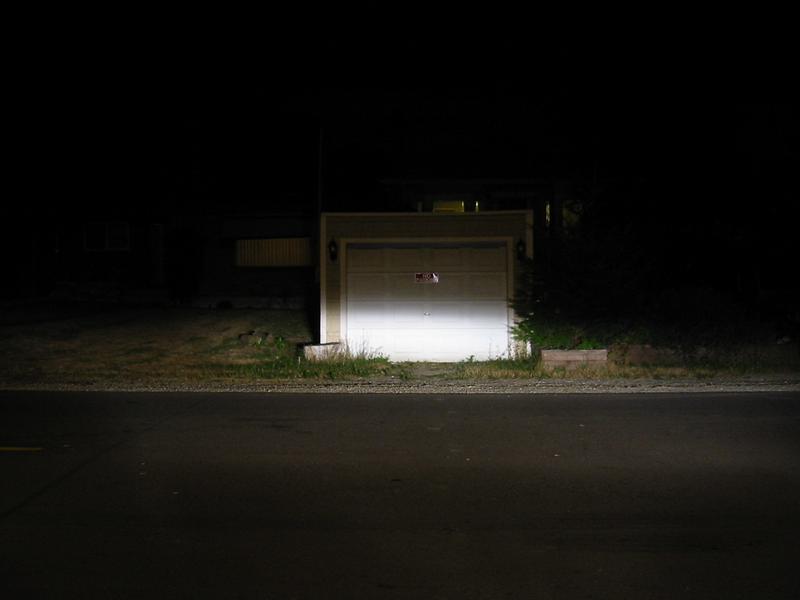

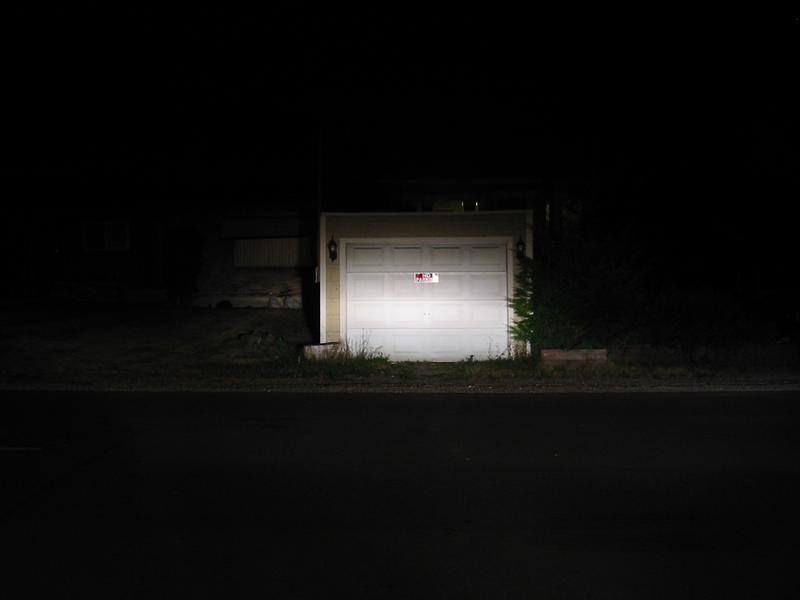

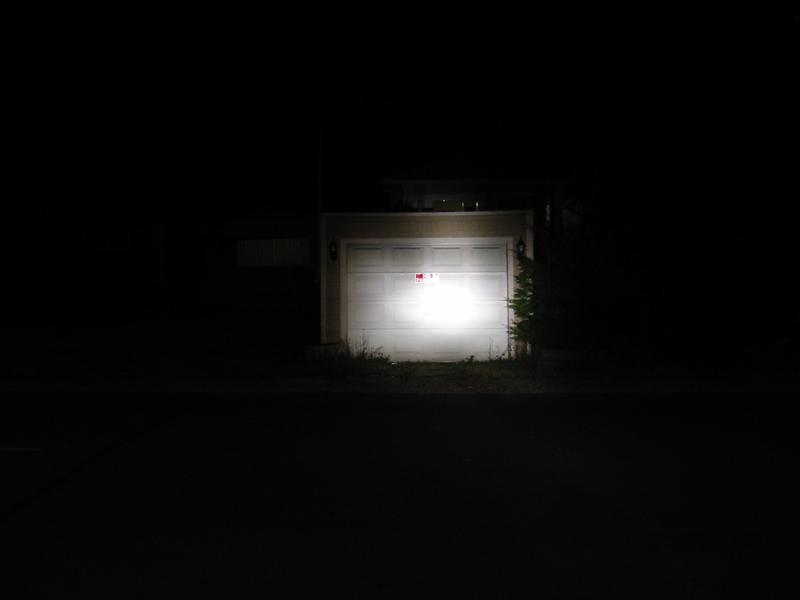

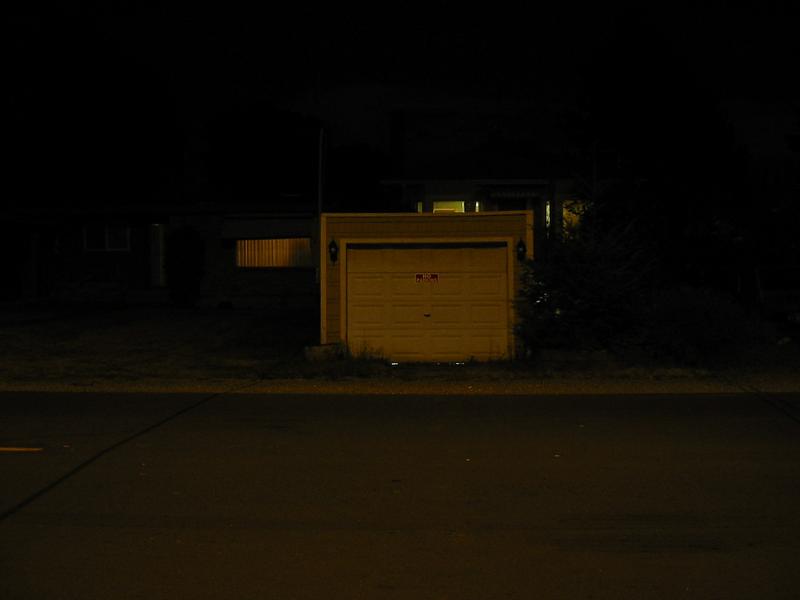

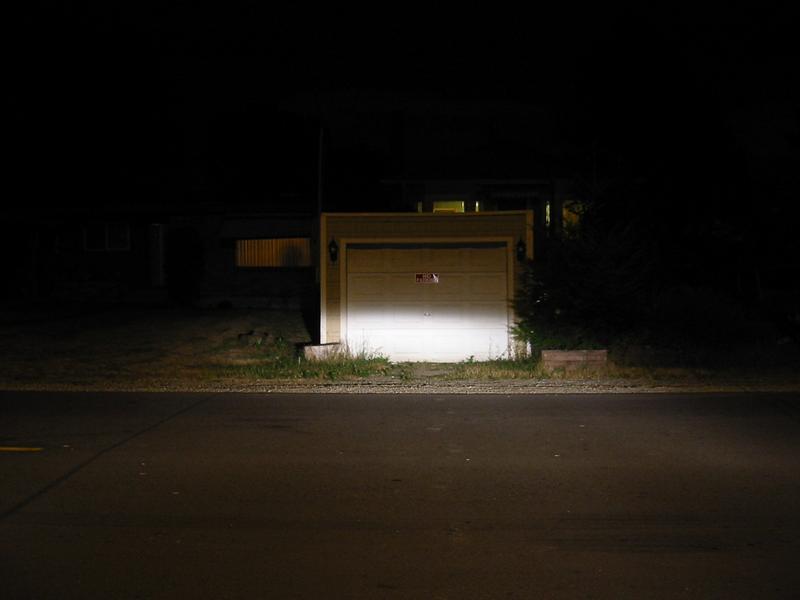

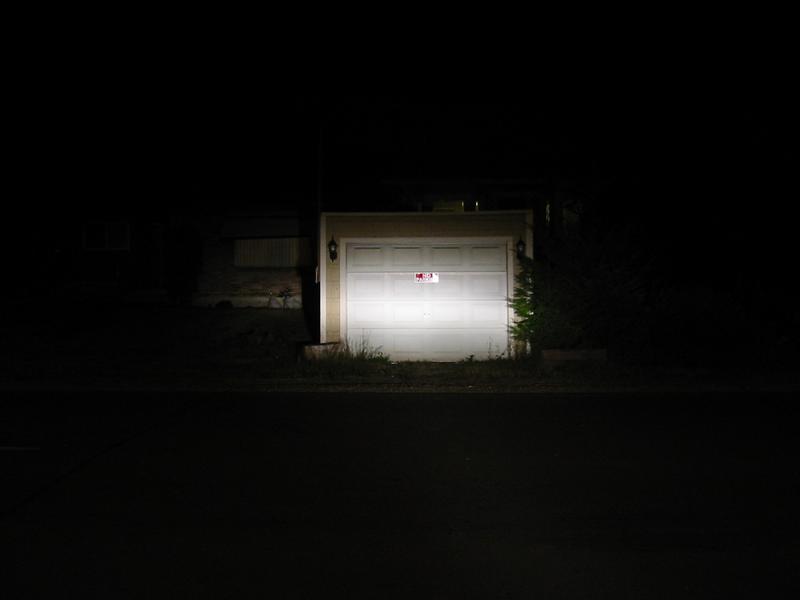

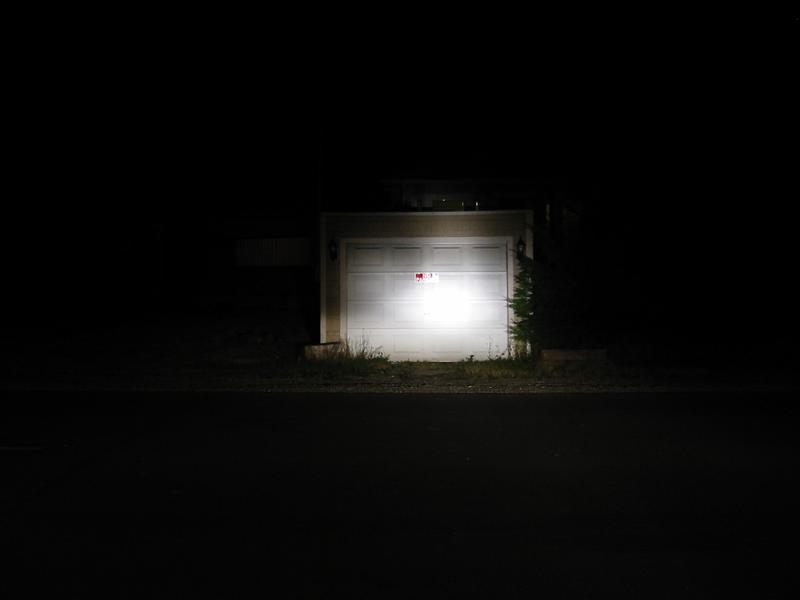

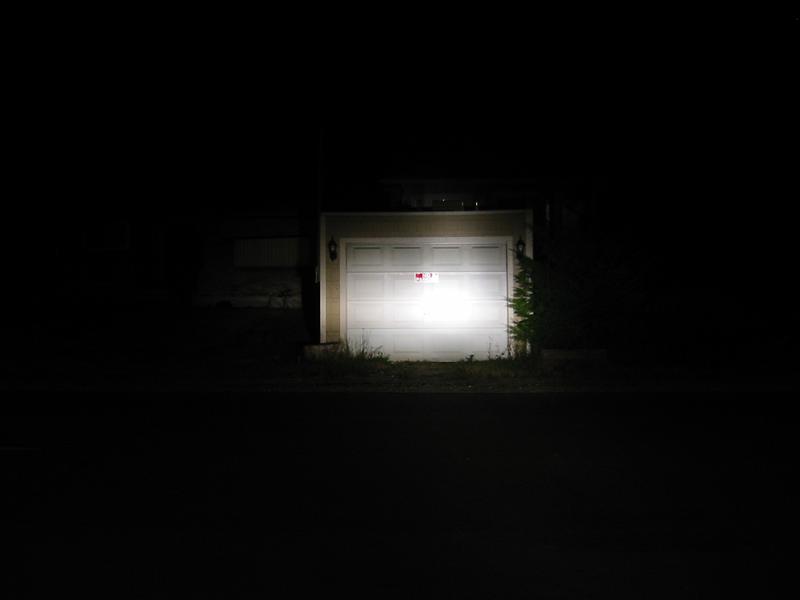

The following table shows views of what each combination of lights looks like, while facing my garage door:

No extra lights Fog light Driving light
No headlight [No headlight/No extra lights] [No headlight/Fog light] [No headlight/Driving light]
Low beam [Low beam/No extra lights] [Low beam/Fog light] [Low beam/Driving light]
High beam [High beam/No extra lights] [High beam/Fog light] [High beam/Driving light]

These pictures were taken with the bike about 50 feet from the garage.
