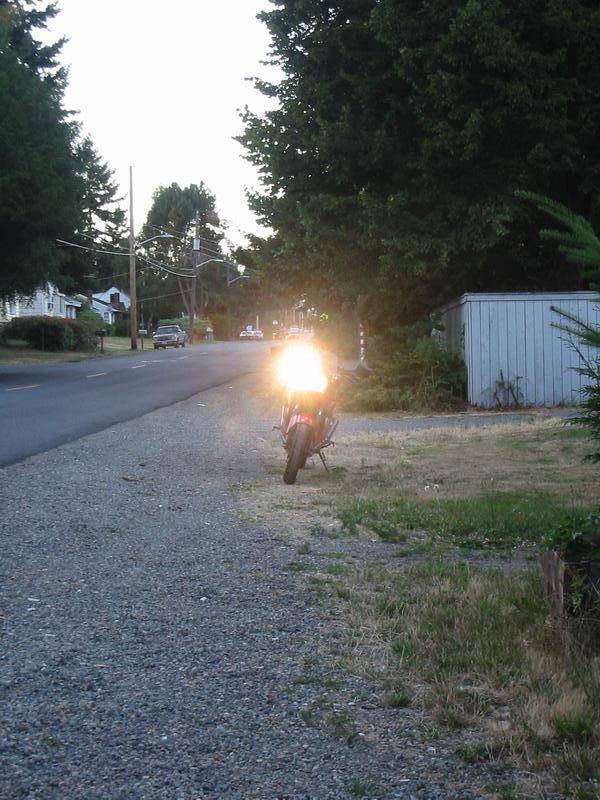

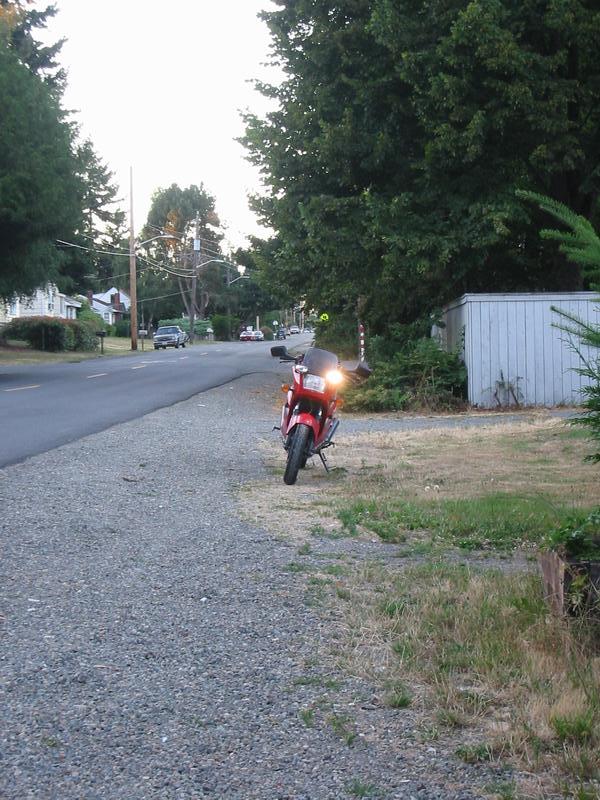

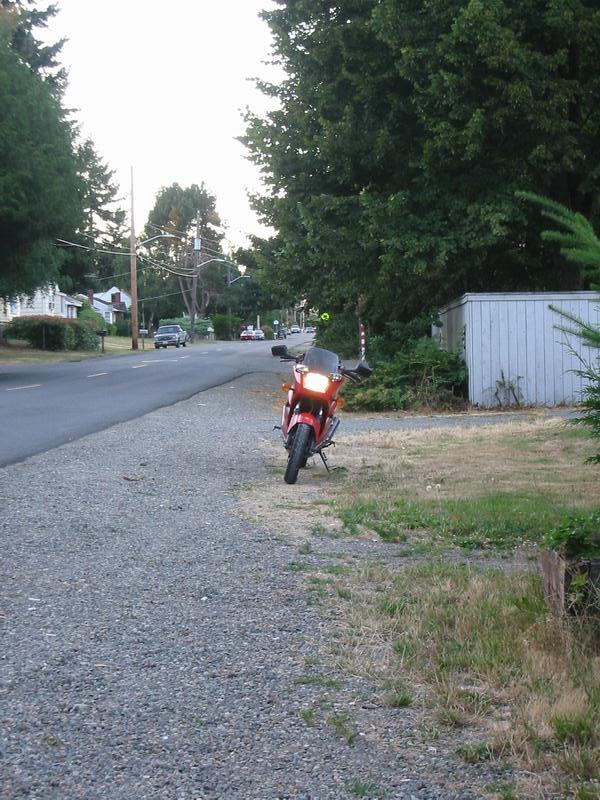

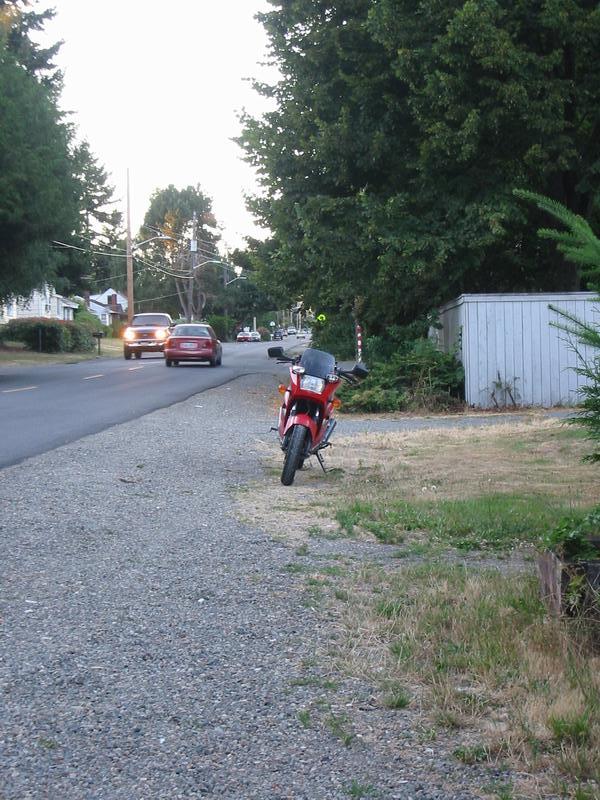

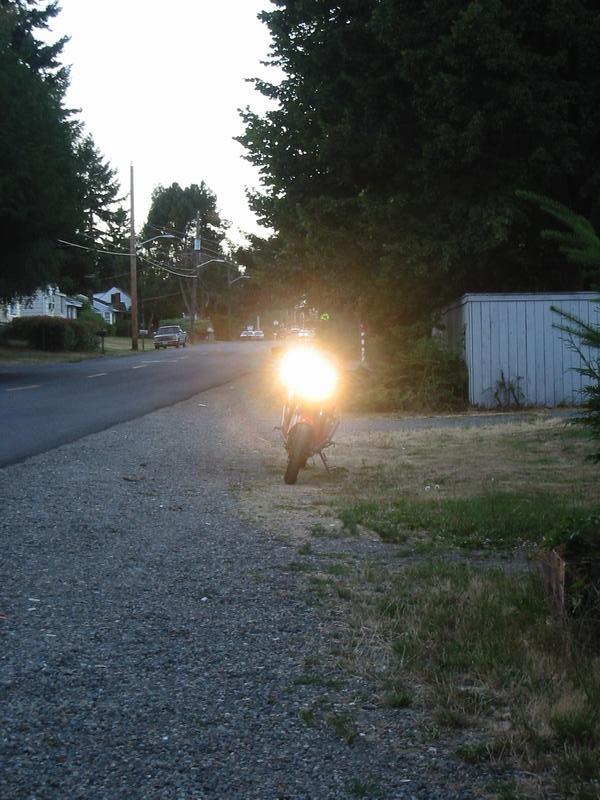

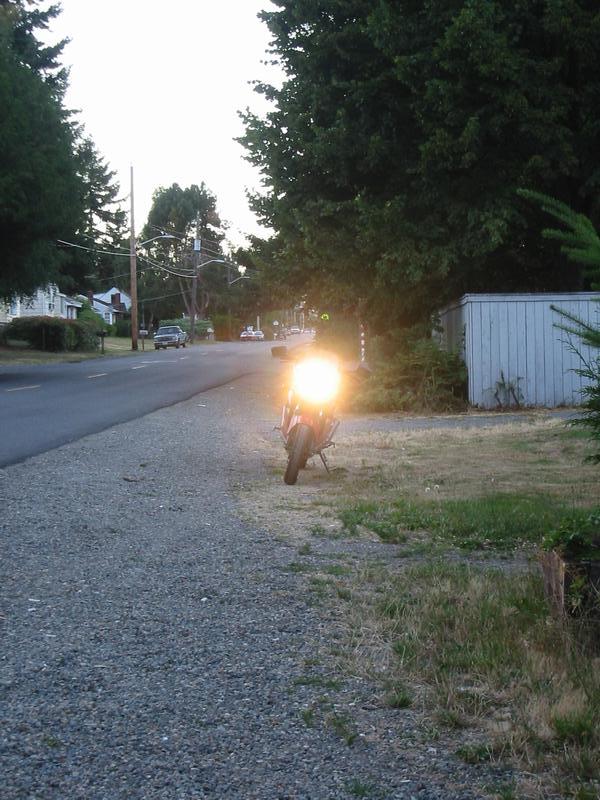

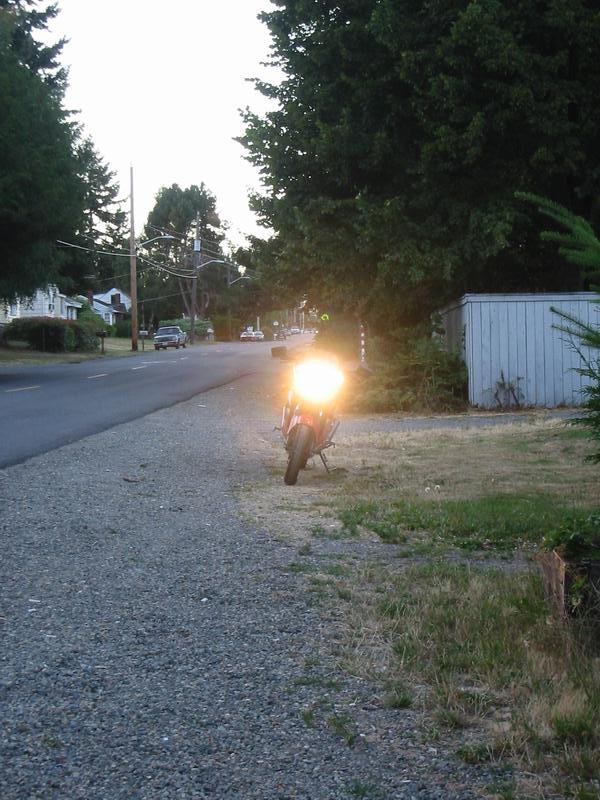

The following table shows views of what each combination of lights looks like while looking at the bike:

No extra lights Fog light Driving light
No headlight [No headlight/No extra lights] [No headlight/Fog light] [No headlight/Driving light]
Low beam [Low beam/No extra lights] [Low beam/Fog light] [Low beam/Driving light]
High beam [High beam/No extra lights] [High beam/Fog light] [High beam/Driving light]

These pictures were shot at bright twilight over the span of about 5 minutes. Camera is about 1m (3.5 feet) off the ground, just above the cutoff line for the lowbeam and fog light.
