The Icom IC-260A

This page is a brief pictoral description of the IC-260A, about which I was unable to find anything on the web. I hope this helps anyone interested in this radio. Click on the thumbnails to bring up a full sized image.

I have written up a short description of the IC-260A, covering specifications of the radio, and what some of the features are.

I just added the schematics and parts layout diagrams from the manual, as well as the manual itself.

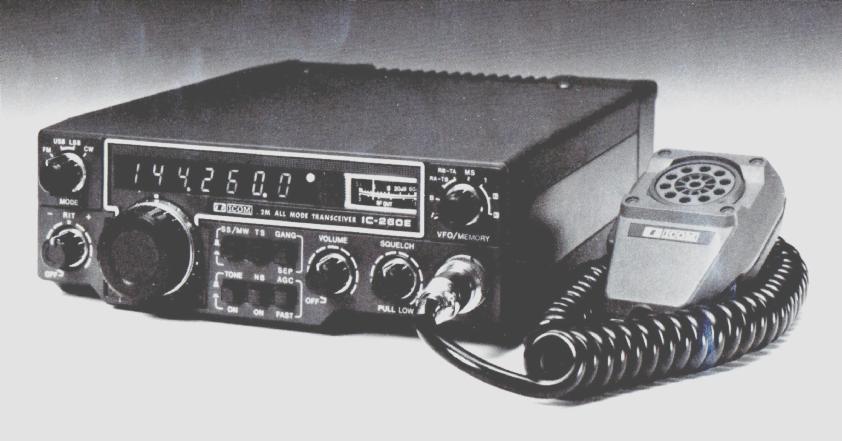

[B/W IC-260a pic] This is the picture of the radio that appears in the manual.

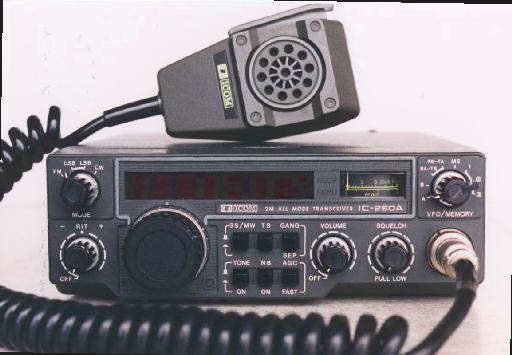

[IC-260a front] The front of the radio, including a shot of the microphone.
[IC-260a alt front] An older picture of the front panel.
[IC-260a back] This is the back of the radio, with the little rubber boot taken off the accessory connector on the right.
